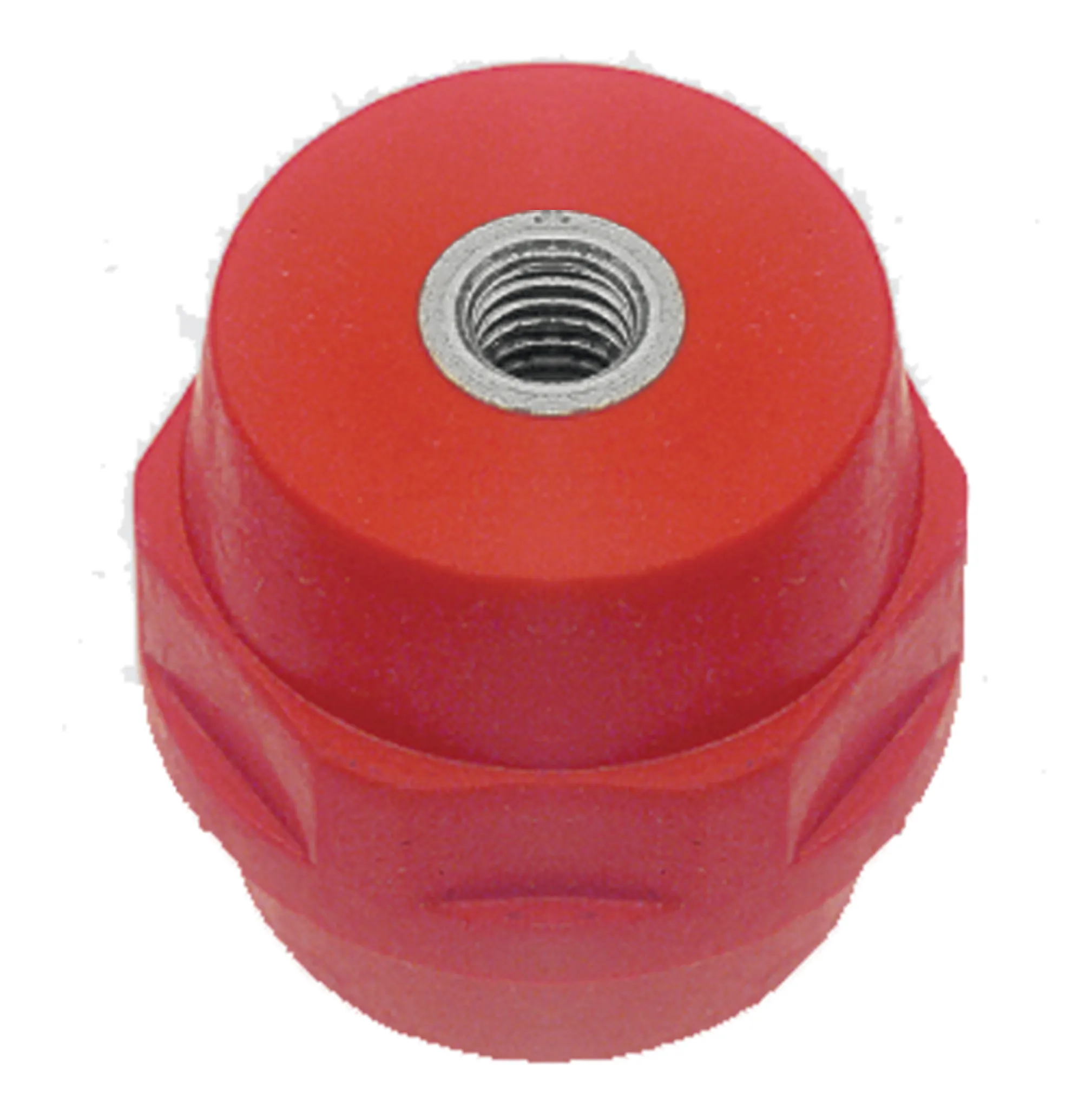

Busbar insulator INS 601055 003810240
Specifications
- ETI Code:
- 003810240
- Description:
- INS 601055
- Class name:
- Busbar insulator
- Impuls isolation strenght (kV):
- 50kV
- Working temperature (°C):
- -20°C-120°C
- Material:
- Polyester BMC
- Flammable class:
- V0
- Height (mm):
- 60mm
- Width (mm):
- 55mm
- Hole diameter (mm):
- 10mm
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895495628
- Net weight of the product
- 0.091 kg
- Customs tariff
- 85469010
Basic packaging
- Basic packaging quantity
- 20
- EAN code for a basic packaging
- 3838895524618
- Basic packaging weight
- 1.82 kg
Transport packaging
- Transport packaging quantity
- 25
- EAN code for a transport packaging
- 3838895495635
- Transport packaging weight
- 2.275 kg
- Pallet quantity
- 6000
