Fuse link M2XL gPV 200A/1500V DC UL 004110566
Specifications
- ETI Code:
- 004110566
- Description:
- M2XL gPV 200A/1500V DC UL
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- 2XL
- Rated current (A):
- 200
- Rated DC voltage (V):
- 1500
- Characteristics:
- gPV
- L/R (ms):
- 3
- Breaking capacity DC (kA):
- 30
- Application:
- Fuse-link for DC application
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 36
- Power dissipation (0,7xIn) (W):
- 15,9
- Operating joule integral (A2s):
- 75.000
- Prearcing joule integral (A2s):
- 42.000
- Standards:
- IEC 60269-6, UL 248-19
- UL certificate:
- E347771
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 1350 g
- Customs tariff
- 85351000
- logis_net_width
- 60 mm
- logis_net_height
- 208 mm
- logis_net_depth
- 73 mm
Level 1 Packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895602910
- Basic packaging weight
- 1.12 kg
Level 2 Packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895602927
- Transport packaging weight
- 13.79 kg
- Pallet quantity
- 624
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- Other
- Rated current
- 200
- Rated voltage
- 1500
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- gPV (photovoltaic protection)
- Type of fuse status indicator
- Top fuse status indicator

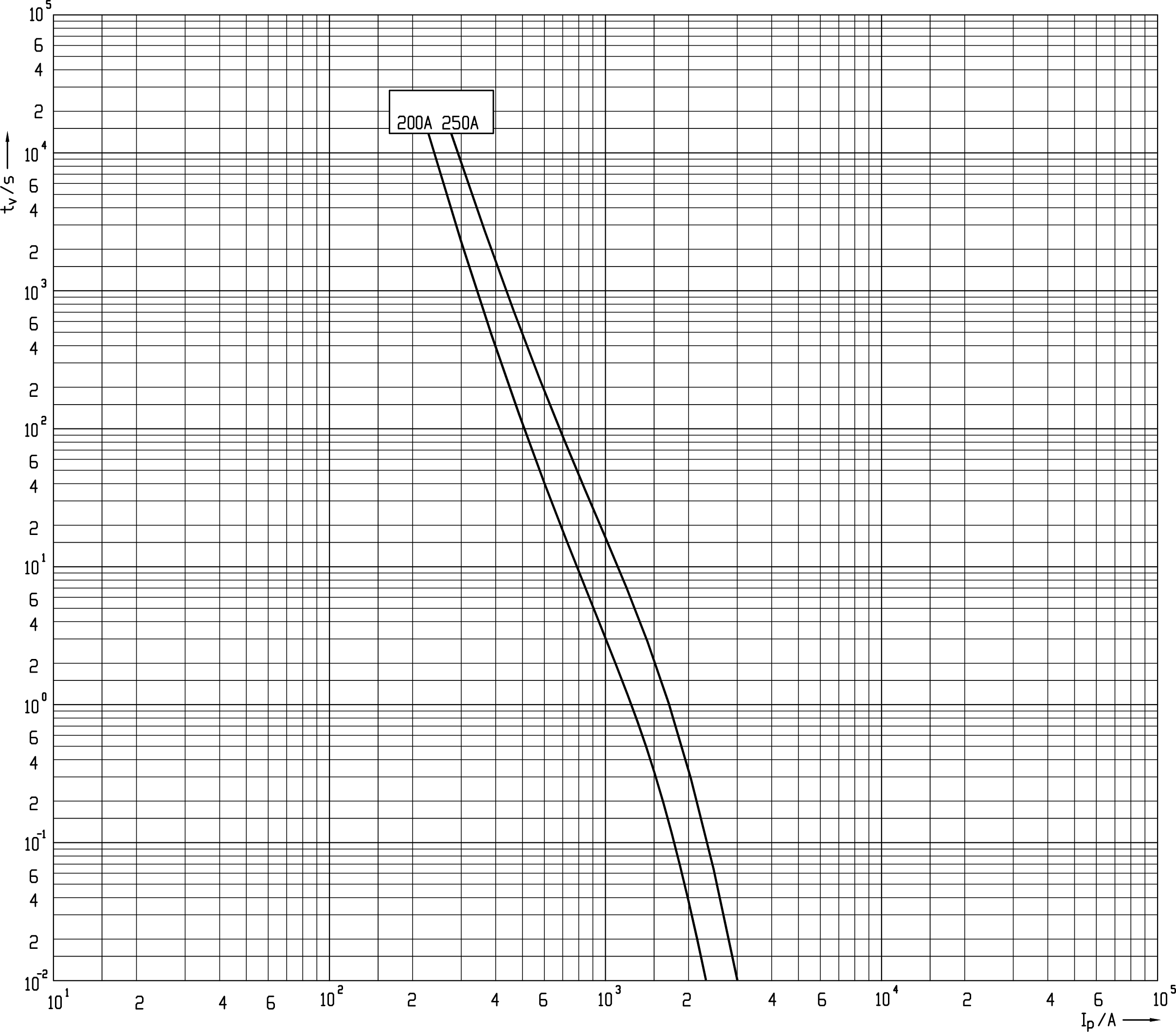

Characteristic
