Fuse link NH2 gBat 250A/1000V DC 004110762
Specifications
- ETI Code:
- 004110762
- Description:
- NH2 gBat 250A/1000V DC
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 250
- Type:
- NH
- Standards:
- IEC 60269
- Size:
- NH2
- Characteristics:
- gBat
- Rated DC voltage (V):
- 1000
- Indicator:
- Top fuse status indicator
- Breaking capacity DC (kA):
- 30
- Power dissipation (W):
- 36
- Power dissipation (0,7xIn) (W):
- 15
- Operating joule integral (A2s):
- 38.000
- L/R (ms):
- 1
- Prearcing joule integral (A2s):
- 6.000
- Application:
- Battery protection
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 0.85 kg
- Customs tariff
- 85361090
- logis_net_width
- 61 mm
- logis_net_height
- 150 mm
- logis_net_depth
- 71 mm
Level 1 Packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895897439
- Basic packaging weight
- 0.7 kg
Level 2 Packaging
- Transport packaging quantity
- 16
- EAN code for a transport packaging
- 3838895897446
- Transport packaging weight
- 11.66 kg
- Pallet quantity
- 832
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH2
- Rated current
- 250
- Rated voltage
- 1000
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
Characteristic

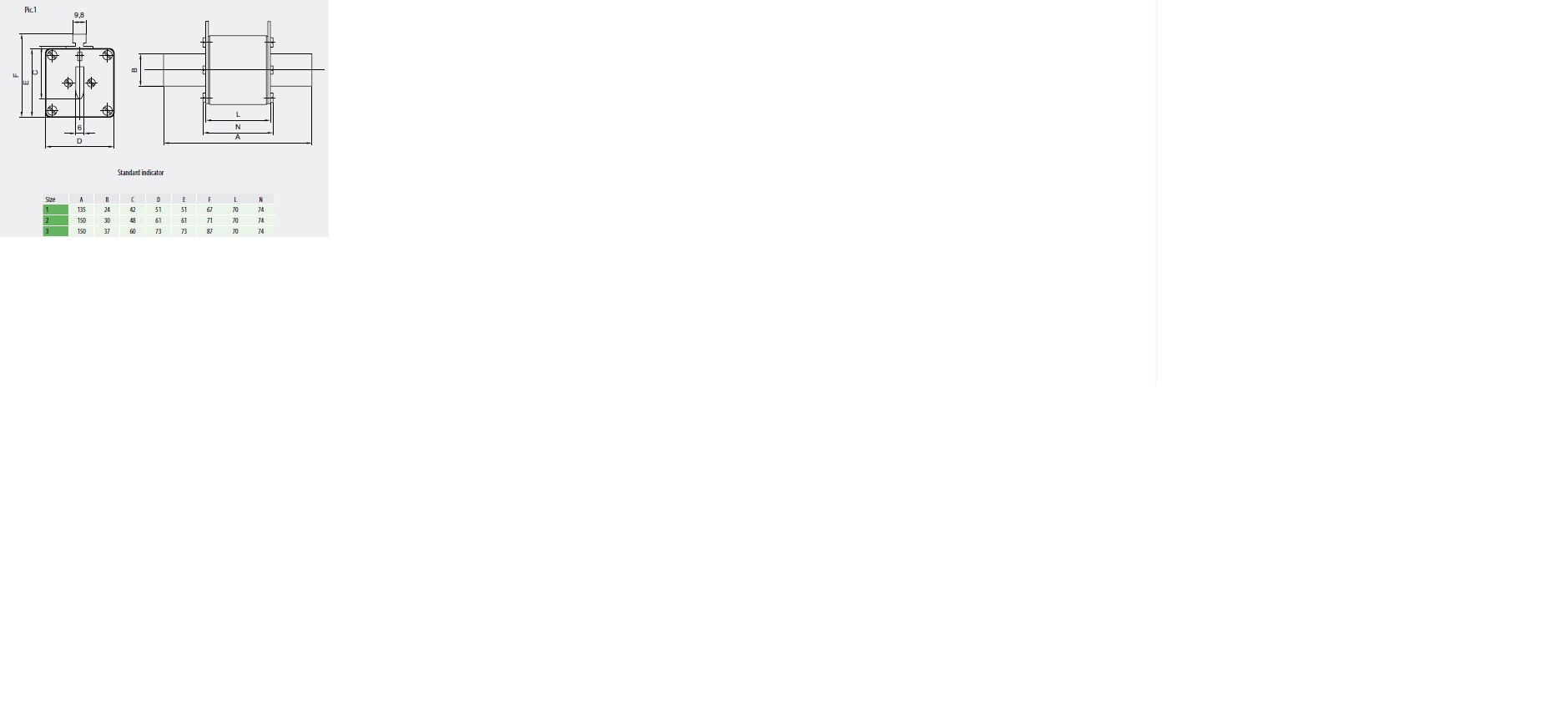

Images & Diagrams
