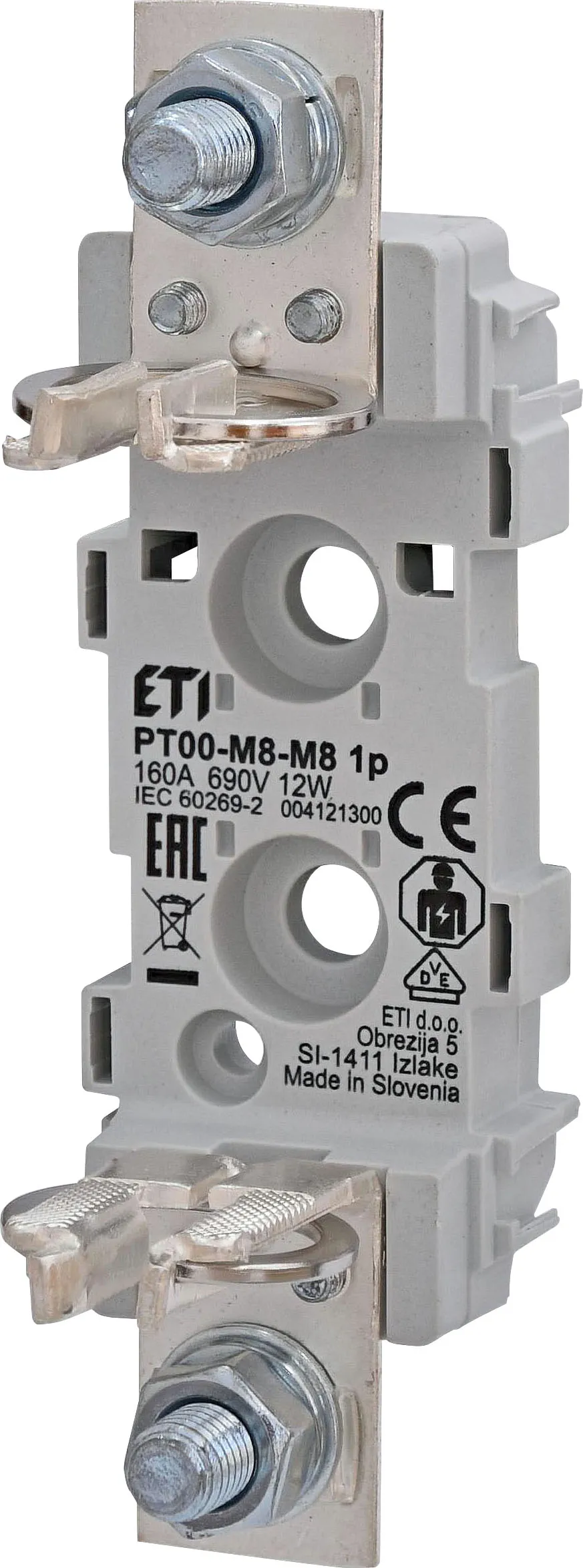

Fuse link base PT 00 M8-M8 1p 004121300
Specifications
- ETI Code:
- 004121300
- Description:
- PT 00 M8-M8 1p
- Class name:
- Fuse link base
- Product group:
- LV-fuse base
- Size:
- NH00
- No. Of poles:
- 1
- Rated current (A):
- 160
- Rated AC voltage (V):
- 690
- Breaking capacity AC (kA):
- 120
- Rated Frequency (Hz):
- 40-60
- Overvoltage Category:
- III
- Mounting:
- Screw-on
- Standards:
- IEC 60269-2
- Ambient temperature (°C):
- -25... 55°C
- Conventional free air thermal current with fuse links (A):
- 160A
- Conventional free air thermal current with solid links (A):
- 200A
- Max Permissable Power Dissipation per Fuse Link (W):
- 12
- Rated operating mode:
- uninterrupted
- Pollution Degree:
- 3
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400039521
- Net weight of the product
- 0.11 kg
- Customs tariff
- 85389099
Level 1 Packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895775188
- Basic packaging weight
- 0.39 kg
Level 2 Packaging
- Transport packaging quantity
- 75
- EAN code for a transport packaging
- 3838895775195
- Transport packaging weight
- 10.205 kg
- Pallet quantity
- 675
ETIM Clasification
- Classification
- EC000067
- Class name
- Low Voltage HRC fuse base
- Construction size
- NH00
- Number of poles
- 1
- Rated current
- 160
- Bus-mounting type
- Yes
