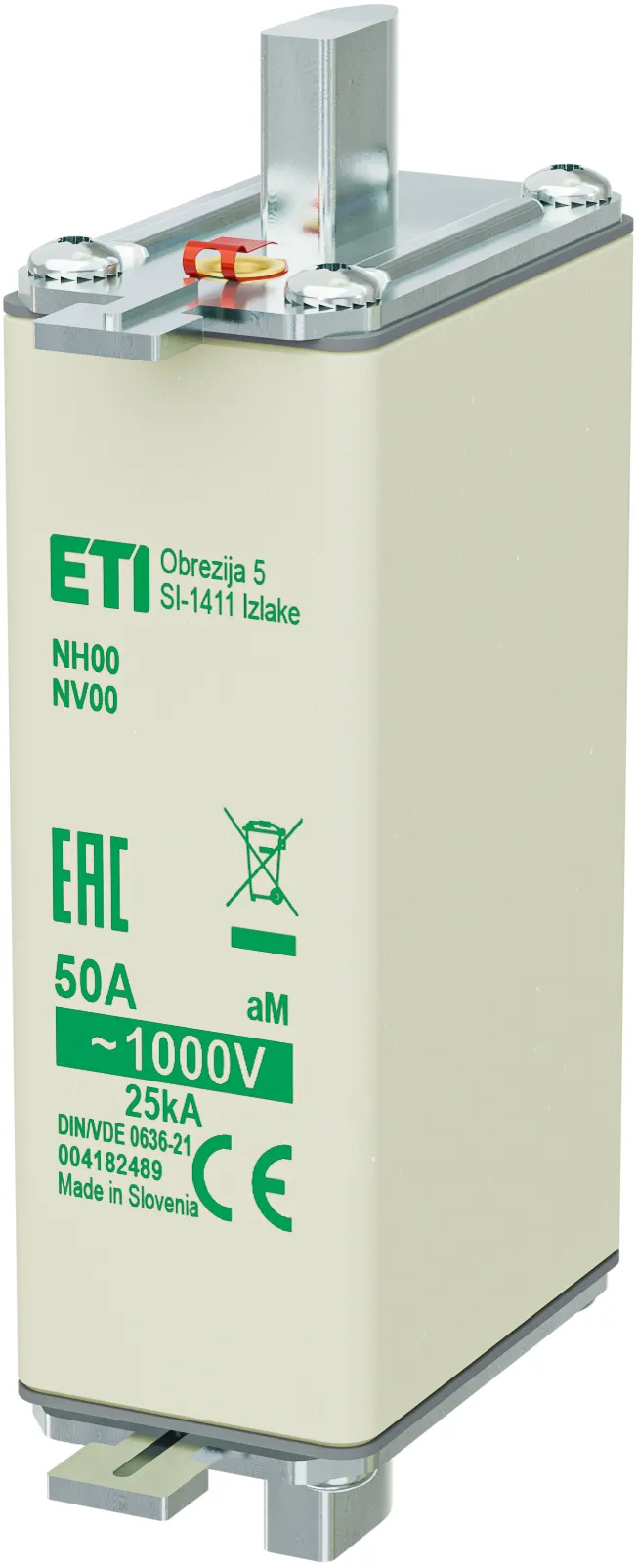

Fuse link NH00/85 aM 50A/1000V 004182489
Specifications
- ETI Code:
- 004182489
- Description:
- NH00/85 aM 50A/1000V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH00/85
- Rated current (A):
- 50A
- Rated AC voltage (V):
- 1000V
- Characteristics:
- aM
- Breaking capacity AC (kA):
- 25kA
- Application:
- For relays, contactors and motors protection in case of short-circuit
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 13W
- Operating joule integral (A2s):
- 40000
- Prearcing joule integral (A2s):
- 7000
- Standards:
- VDE 0636-2011
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400061799
- Net weight of the product
- 350 g
- Customs tariff
- 85361050
- logis_net_width
- 29 mm
- logis_net_height
- 116 mm
- logis_net_depth
- 60 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895723004
- Basic packaging weight
- 1.08 kg
Transport packaging
- Transport packaging quantity
- 45
- EAN code for a transport packaging
- 3838895723011
- Transport packaging weight
- 16.5 kg
- Pallet quantity
- 2340
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- Other
- Rated current
- 50
- Rated voltage
- 1000
- Voltage type
- AC
- Rated switching capacity
- 25
- Utilization category
- aM (switchgear protection)
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
