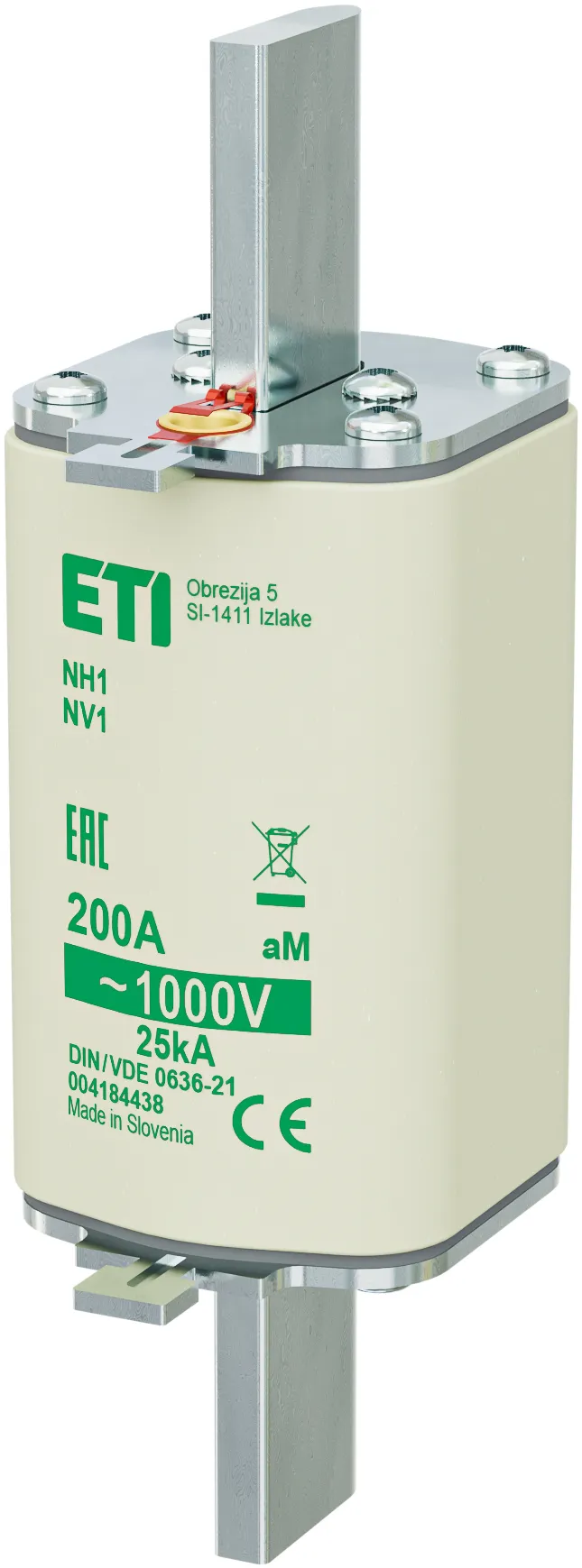

Fuse link NH1/85 aM 200A/1000V 004184438
Specifications
- ETI Code:
- 004184438
- Description:
- NH1/85 aM 200A/1000V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH1 85mm
- Rated current (A):
- 200
- Rated AC voltage (V):
- 1000
- Characteristics:
- aM
- Breaking capacity AC (kA):
- 25
- Application:
- For relays, contactors and motors protection in case of short-circuit
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 28
- Operating joule integral (A2s):
- 600.000
- Prearcing joule integral (A2s):
- 110.000
- Standards:
- VDE 0636-2011
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 0.5 kg
- Customs tariff
- 85361090
- logis_net_width
- 64 mm
- logis_net_height
- 170 mm
- logis_net_depth
- 84 mm
Level 1 Packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895638513
- Basic packaging weight
- 0.548 kg
Level 2 Packaging
- Transport packaging quantity
- 17
- EAN code for a transport packaging
- 3838895638520
- Transport packaging weight
- 9.5 kg
- Pallet quantity
- 884
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- Other
- Rated current
- 200
- Rated voltage
- 1000
- Voltage type
- AC
- Rated switching capacity
- 25
- Utilization category
- aM (switchgear protection)
- Type of fuse status indicator
- Top fuse status indicator
Characteristic
