Fuse link NH3C gG 250A/690V 004186319
Specifications
- ETI Code:
- 004186319
- Description:
- NH3C gG 250A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH3C
- Rated current (A):
- 250
- Rated AC voltage (V):
- 690
- Rated DC voltage (V):
- 250
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 100
- Application:
- For cable protection
- Indicator:
- Combination fuse status indicator
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400035905
- Net weight of the product
- 585 g
- Customs tariff
- 85361090
- logis_net_width
- 54 mm
- logis_net_height
- 150 mm
- logis_net_depth
- 84 mm
Level 1 Packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895399155
- Basic packaging weight
- 1.53 kg
Level 2 Packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895399162
- Transport packaging weight
- 6.65 kg
- Pallet quantity
- 288
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH3C
- Rated current
- 250
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Combination fuse status indicator
Characteristic

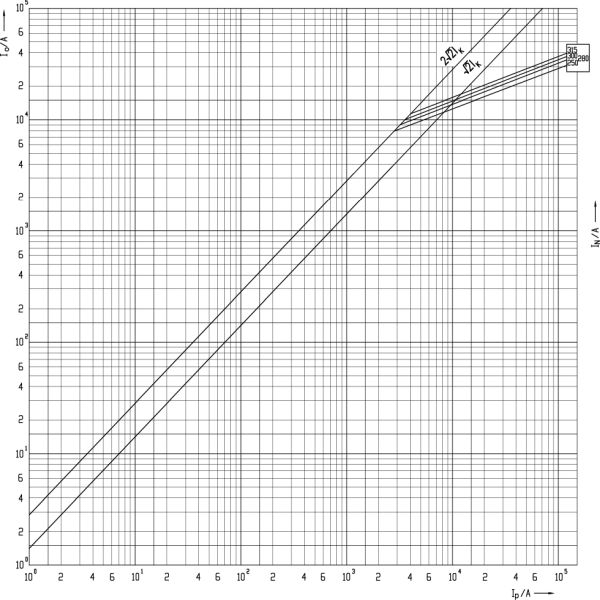

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
Tags
Accessories 25
>
>
0
NH3C gG 250A/690V
