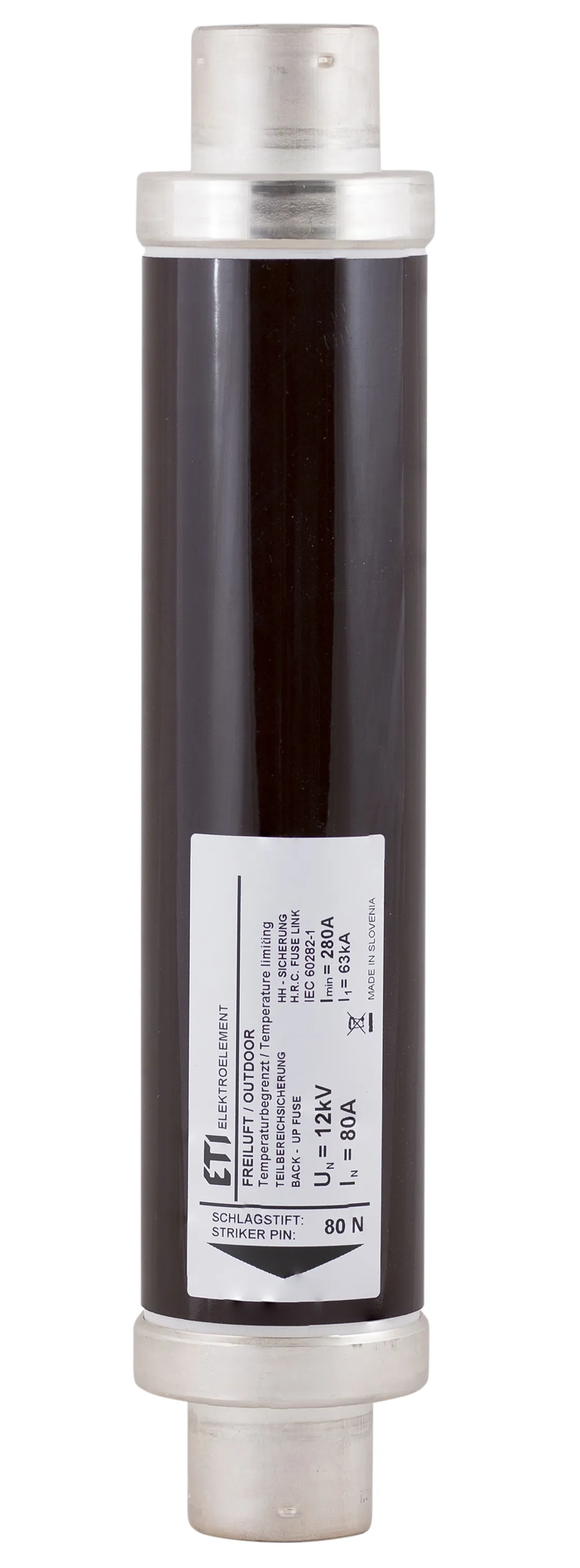

Fuse link VVA3 12kV/80A 004231116

Specifications

ETI Code:
004231116
Description:
VVA3 12kV/80A
Class name:
Fuse link
Rated minimum breaking current (A):
280
Cold resistance (mΩ):
9
Rated current (A):
80
Type:
NEW VVA without striker
Size:
292
Characteristics:
Other
Rated AC voltage (V):
12000
Indicator:
Without
Breaking capacity AC (kA):
63
Power dissipation (W):
75
Application:
transformer protection, motor protection, capacitor bank protection, installation in ring main unit

Documents

Product

EAN code for a single product
3838895912217
Net weight of the product
2.8 kg
Customs tariff
85351000

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895912217
Basic packaging weight
2.8 kg
Basic packaging volume
5.14

Transport packaging

Transport packaging quantity
3
EAN code for a transport packaging
3838895912224
Transport packaging weight
9.02 kg
Transport packaging volume
15.42
Pallet quantity
90
Pallet volume
462.6
Classification
EC003507
Class name
Medium-/high voltage fuse
Application
Other
Breaking capacity
63kA
Diameter
68mm
Installation technique
Air
Length
292mm
Nominal rated current
80A
Nominal rated frequency
45…60Hz
Nominal rated voltage
12kV
Performance category according to IEC 60282-1
Back-up
Standard
IEC
Utilization category
Other
Voltage type
AC
With striker
No
ETIM Classification – Version 7.0
