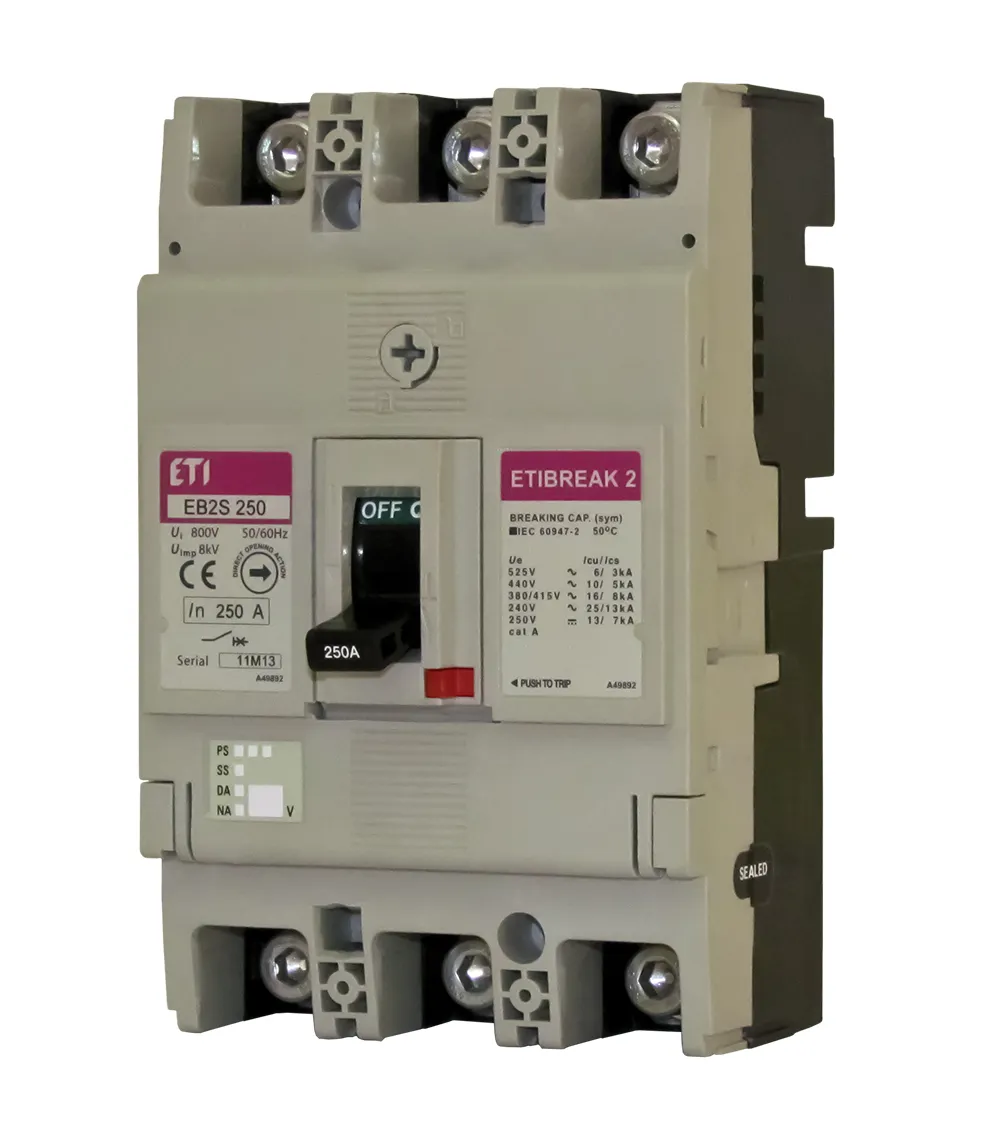

Molded Case Circuit Breaker EB2S 250/4LF 200A 4p 004671825
Specifications
- ETI Code:
- 004671825
- Description:
- EB2S 250/4LF 200A 4p
- Class name:
- Molded Case Circuit Breaker
- Function:
- MCCB
- Rated current (A):
- 200A
- Number of poles:
- 4
- Connection type:
- front connection
- Standards:
- 60947
- Rated impulse withstand voltage Uimp (kV):
- 8kV
- Rated short-circuit breaking capacity at 415V Icu/Ics (kA):
- 16kA/8kA
- Rated operational voltage AC (V):
- 690V
- Rated operational voltage DC (V):
- 250V
- Rated insulation voltage (V):
- 800V
- Thermal adjustment:
- fixed
- Magnetic adjustment:
- fixed
- Adjustable or fixed:
- fixed
Documents
Logistic Data
Product
- Net weight of the product
- 1 kg
- Customs tariff
- 85362090
- logis_net_width
- 140 mm
- logis_net_height
- 165 mm
- logis_net_depth
- 92 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895616344
- Transport packaging weight
- 2 kg
- Pallet quantity
- 800
ETIM Clasification
- Classification
- EC000228
- Class name
- Power circuit-breaker for trafo/generator/installation protection
- Rated permanent current Iu
- 200A
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 16kA
- Overload release current setting
- 200…200A
- Adjustment range undelayed short-circuit release
- 2600…2600A
- Integrated earth fault protection
- No
- Type of electrical connection of main circuit
- Screw connection
- Device construction
- Built-in device fixed built-in technique
- With switched-off indicator
- Yes
- Number of poles
- 4
- Type of control element
- Rocker lever
- Motor drive integrated
- No
- Motor drive optional
- Yes
- Degree of protection (IP)
- IP20
