Fuse link BS38TUQ/83/450A/690V 004750945

Specifications

ETI Code:
004750945
Description:
BS38TUQ/83/450A/690V
Class name:
Fuse link
efuse:
1
Product group:
Semiconductor Protection
Type:
BS
Size:
BS38T
Rated current (A):
450
Rated AC voltage (V):
690
Rated DC voltage (V):
350
Characteristics:
aR
Breaking capacity AC (kA):
100
Breaking capacity DC (kA):
100
Application:
For protection of semiconductor devices

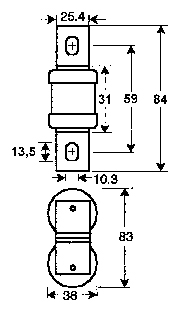

Dimensions:
screw 83mm
Power dissipation (W):
65
Operating joule integral (A2s):
210.000
Standards:
IEC 60269-4, BS88 Part 4

Documents

Product

EAN code for a single product

Net weight of the product
0.466  kg
Customs tariff
85361090
logis_net_width
38  mm
logis_net_height
113  mm
logis_net_depth
83  mm

Level 1 Packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895361770
Basic packaging weight
2.25  kg

Level 2 Packaging

Transport packaging quantity
10
EAN code for a transport packaging
3838895416395
Transport packaging weight
4.66  kg
Pallet quantity
1720
Classification
EC002704
Class name
Cylindrical fuse
Construction size
BS38T
Max. rated operation voltage Ue AC
690
Rated voltage DC
350
Rated current
450
Application
For protection of semiconductor devices
Size
Other
Utilization category
Other
Nominal current
450A
Breaking capacity
100kA
ETIM Classification – Version 7.0

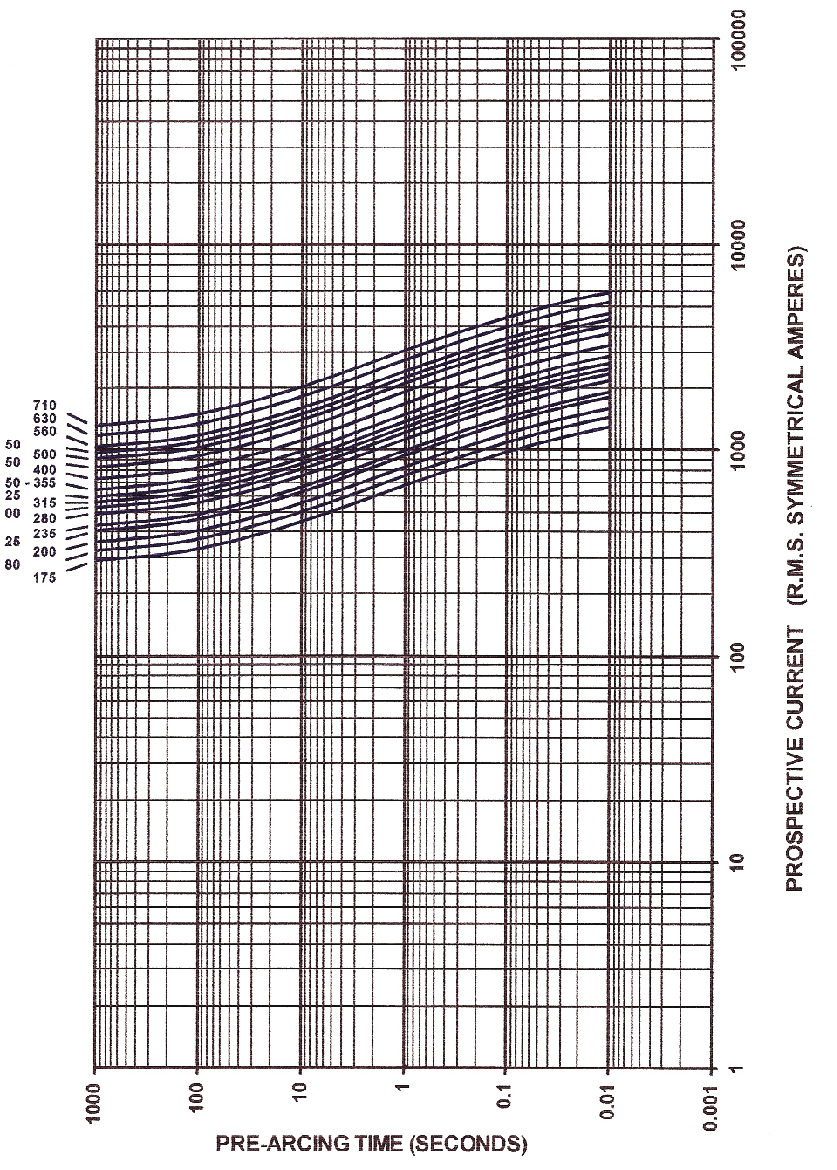

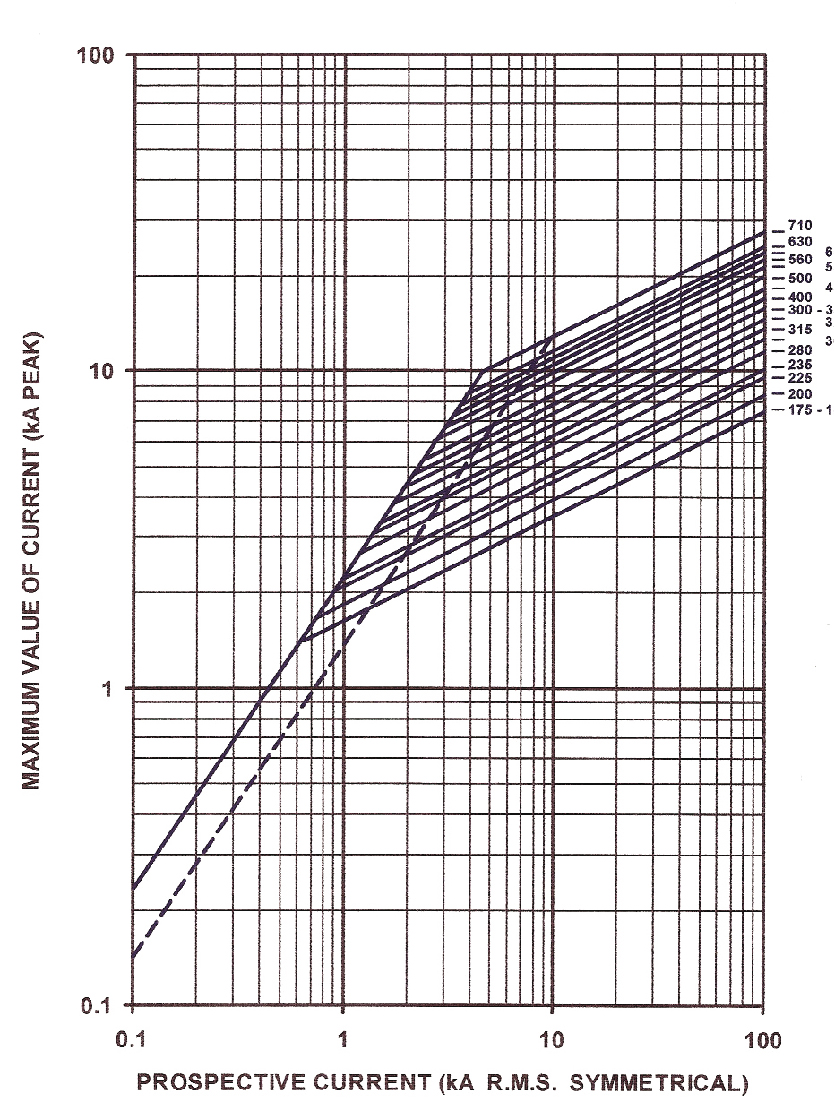

Images & Diagrams
