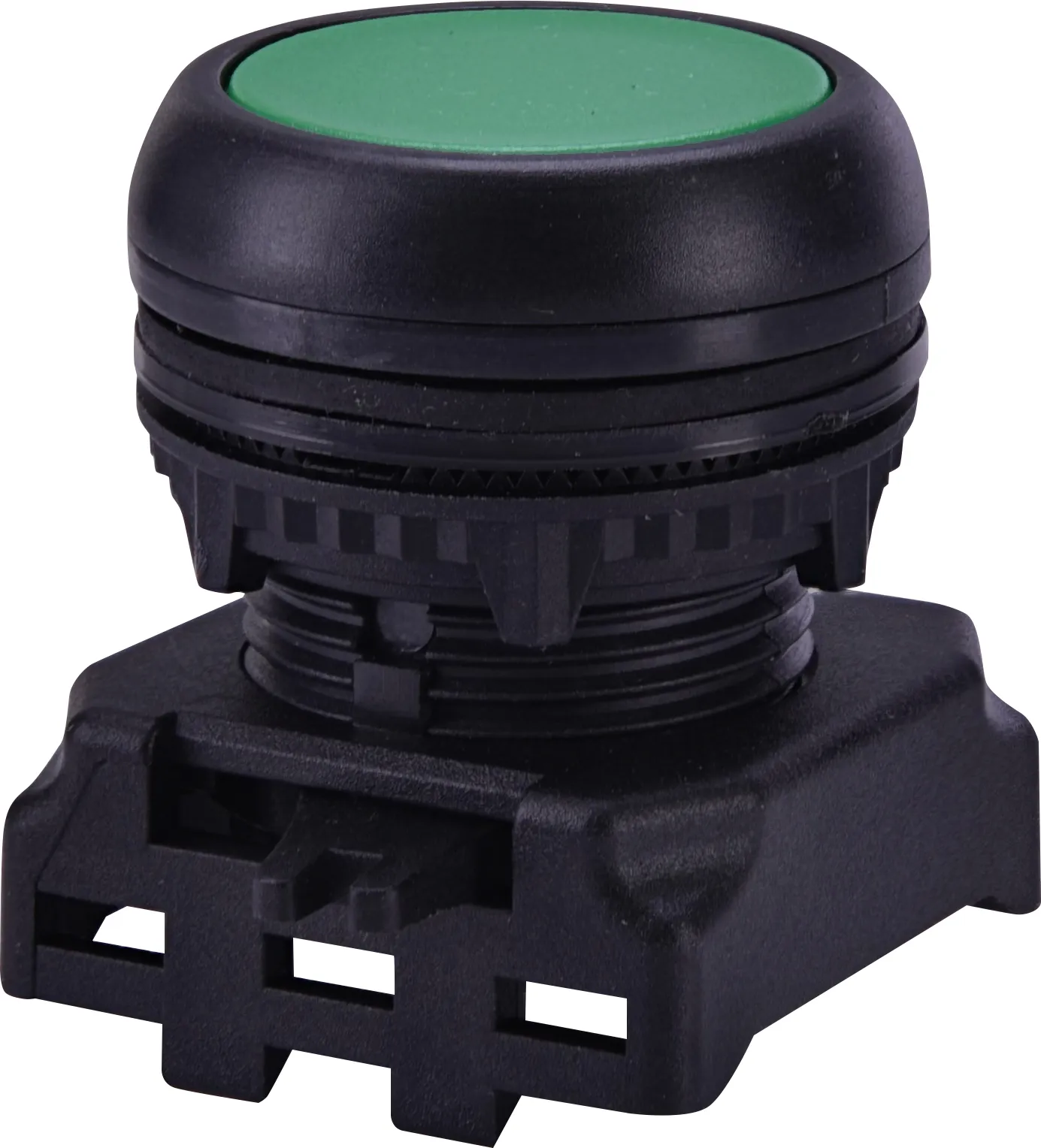

Push button actuator EGF-G 004771241

Specifications

ETI Code:
004771241
Description:
EGF-G
Class name:
Push button actuator
Function:
Non-illuminated actuators
Type:
Push button actuators-flush head
Rated AC voltage (V):
230V
Catalogue Group:
Actuators and indicators E-line

Documents

Product

EAN code for a single product
3838895807445
Net weight of the product
0.02  kg
Customs tariff
85389099
logis_net_width
38  mm
logis_net_height
31  mm
logis_net_depth
37  mm

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895780137
Basic packaging weight
0.26  kg

Transport packaging

Transport packaging quantity
140
EAN code for a transport packaging
3838895780144
Transport packaging weight
3.64  kg
Pallet quantity
11200
Classification
EC000221
Class name
Front element for push button
Colour button
Green
Hole diameter
22,5mm
Degree of protection (IP), front side
IP65
ETIM Classification – Version 7.0

Images & Diagrams

004771241 Flush mounted enclosure Push button actuator, EGF-G ETISIG Actuators and indicators Actuators and indicators Non-illuminated actuators Non-illuminated actuators Push button actuators - flush head Automation, signaling and control devices Actuators and indicators 22,5mm ETISIG Actuators and indicators with accessories Actuators and indicators EGF-G Function Non-illuminated actuators Rated current 2A Type Push button actuators-flush head Number of NC contacts 1 Rated AC voltage 230V IP rating IP65 Color Green Catalogue Group Actuators and indicators E-line Rated Frequency 50 ... 60Hz Rated cross section 1 ... 2,5 Number of NO contacts 1 Working temperature -30 ... 60°C Voltage type AC Terminals 1 ... 2,5 Contacts NO & NC Rated insulation voltage 600V Thermal current Ith 10A Storage temperature -25 ... 70°C Approvals RoHS compliance Mechanical cycles 1.000.000 (push function) Electrical cycles 100.000 (for contact) HV test 2,5kV Push button actuator EGF Non-illuminated actuators 230V Green
