RCBO KZS-R 1p+N A B20/0.03 742015106 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 742015106
- Description:
- * KZS-R 1p+N A B20/0.03
- Class name:
- RCBO
- Rated residual current (A):
- 0.03
- Current type:
- A
- Rated current (A):
- 20
- Tripping characteristic:
- B
- Type:
- A
- Number of poles:
- 1+N
- Short circuit capacity (kA):
- 10
- Rated voltage (V):
- 230
- Rated Frequency (Hz):
- 50 Hz
- Rated cross section:
- 1-25
- Standards:
- IEC/EN 61009
Documents
Logistic Data
Product
- Customs tariff
- 85362010
- logis_net_width
- 35 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 75 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400012463
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838400066695

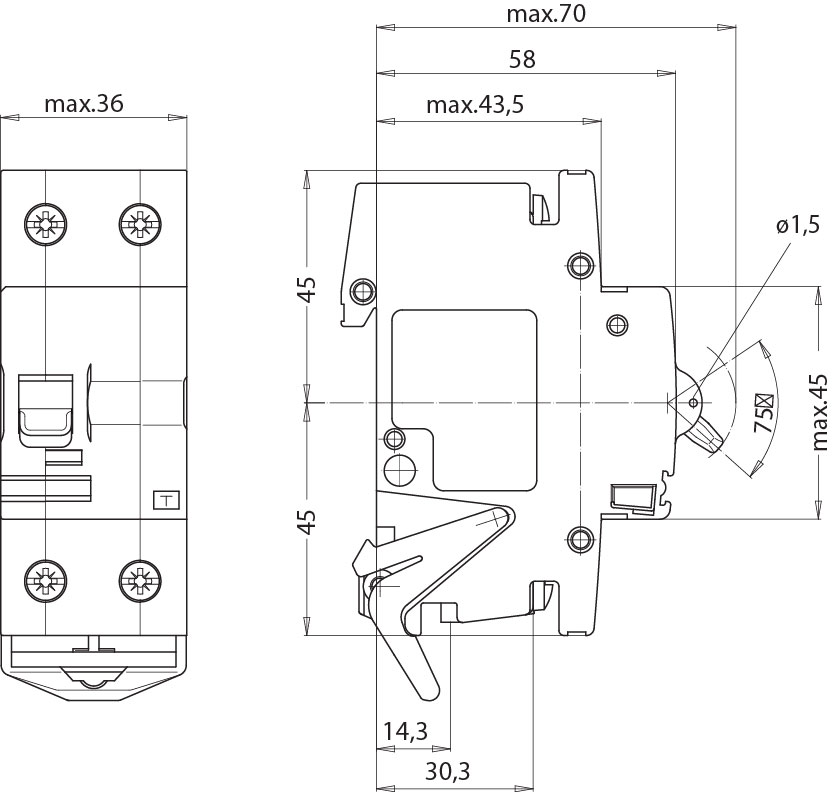

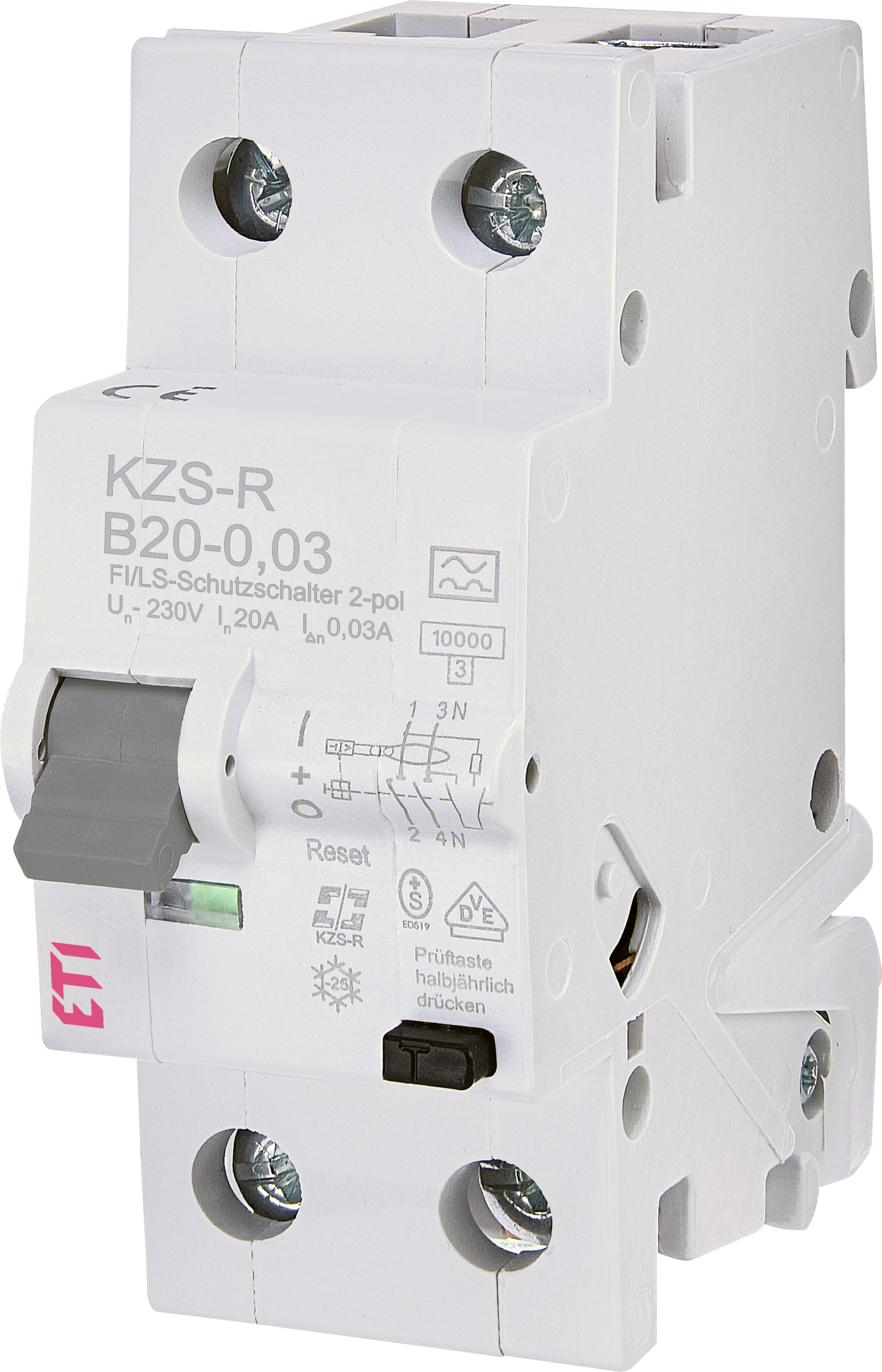

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
* KZS-R 1p+N A B20/0.03
