RCBO DIFO-2 A 6-32/0.3 002058003 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 002058003
- Description:
- *DIFO-2 A 6-32/0.3
- Class name:
- RCBO
- Rated current (A):
- 6A/32A
- Rated residual current (A):
- 3A
- Catalogue Group:
- DIFO2 Add-on block for residual current protectio
Documents
Logistic Data
Product
- Net weight of the product
- 165 g
- Customs tariff
- 85362010
- logis_net_width
- 71 mm
- logis_net_height
- 96 mm
- logis_net_depth
- 78 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895469117
- Basic packaging weight
- 0.19 kg
Transport packaging
- Transport packaging quantity
- 16
- EAN code for a transport packaging
- 3838895469124
- Transport packaging weight
- 3.54 kg
- Pallet quantity
- 960
ETIM Clasification
- Classification
- EC000905
- Class name
- Earth leakage circuit breaker
- Number of poles (total)
- 2
- Rated voltage
- 230/400V
- Rated current
- 6 … 32A
- Rated fault current
- 0,3A
- Leakage current type
- A
- Frequency
- 50 Hz
- Width in number of modular spacings
- 4
- Built-in depth
- 68mm
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1…25mm²
- Connectable conductor cross section multi-wired
- 1…25mm²

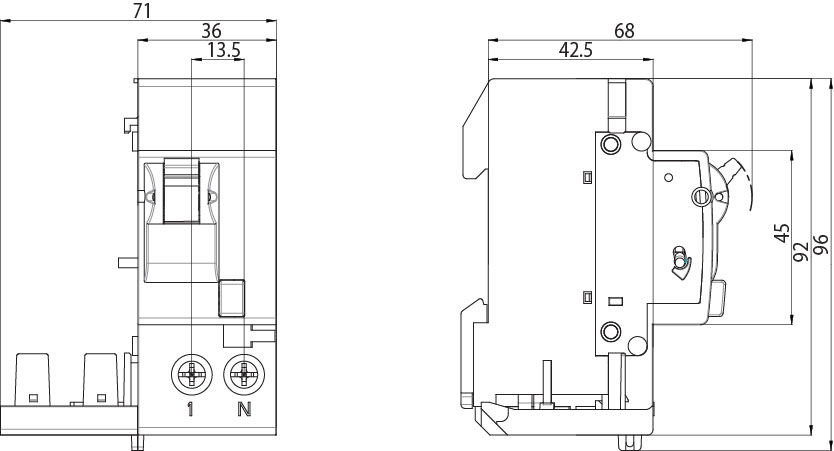

Images & Diagrams
