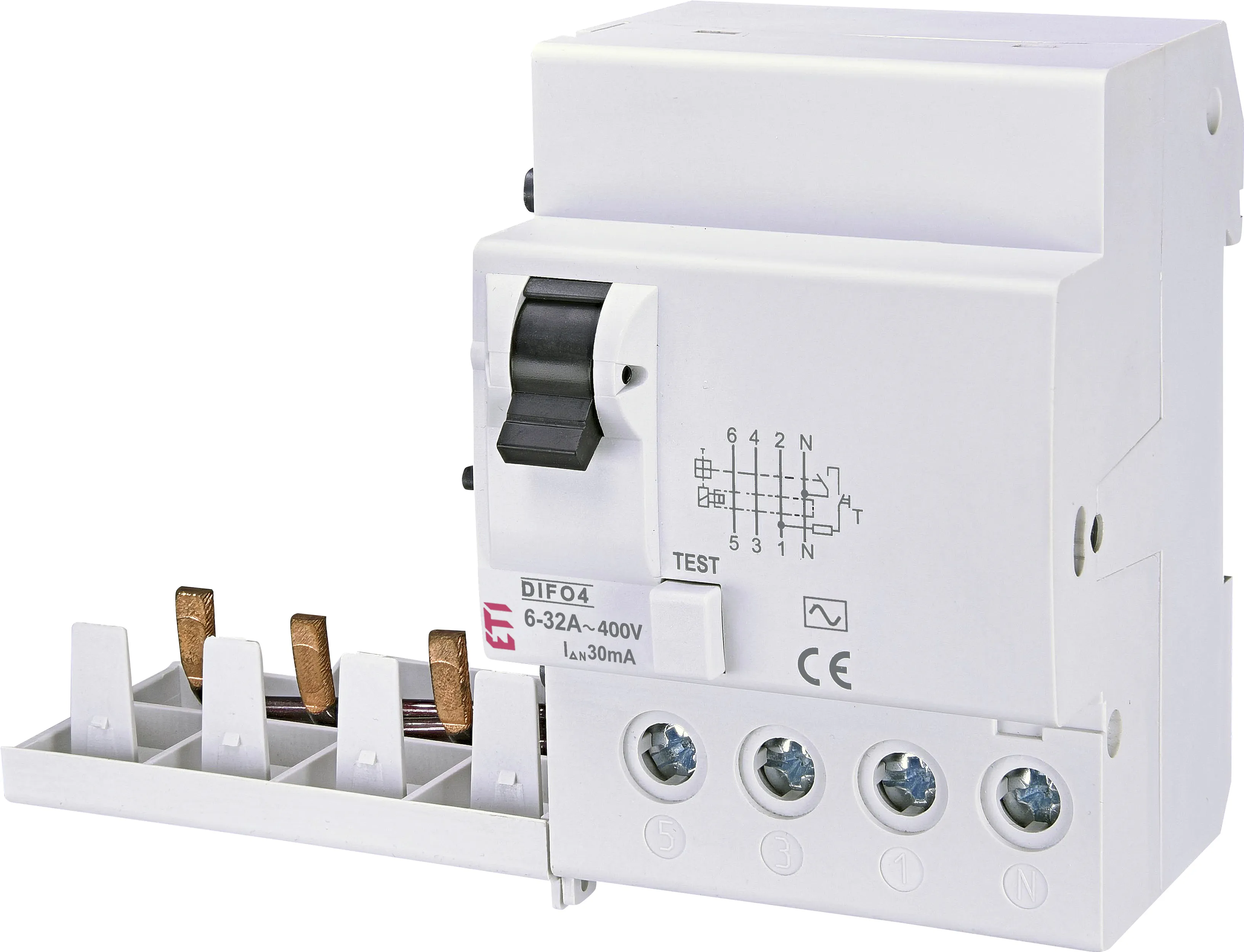

RCBO DIFO-4 AC 6-32/0.03 002058026 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 002058026
- Description:
- *DIFO-4 AC 6-32/0.03
- Class name:
- RCBO
- Rated current (A):
- 6A/32A
- Rated residual current (A):
- 3A
- Catalogue Group:
- DIFO4 Add-on block for residual current protectio
Documents
Logistic Data
Product
- Net weight of the product
- 230 g
- Customs tariff
- 85362010
- logis_net_width
- 134 mm
- logis_net_height
- 96 mm
- logis_net_depth
- 78 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895549727
- Basic packaging weight
- 0.29 kg
Transport packaging
- Transport packaging quantity
- 14
- EAN code for a transport packaging
- 3838895549734
- Transport packaging weight
- 4.56 kg
- Pallet quantity
- 728
ETIM Clasification
- Classification
- EC000905
- Class name
- Earth leakage circuit breaker
- Number of poles (total)
- 4
- Rated voltage
- 230/400V
- Rated current
- 6 … 32A
- Rated fault current
- 0,03A
- Leakage current type
- Other
- Frequency
- 50 Hz
- Width in number of modular spacings
- 8
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1…25mm²
- Connectable conductor cross section multi-wired
- 1…25mm²

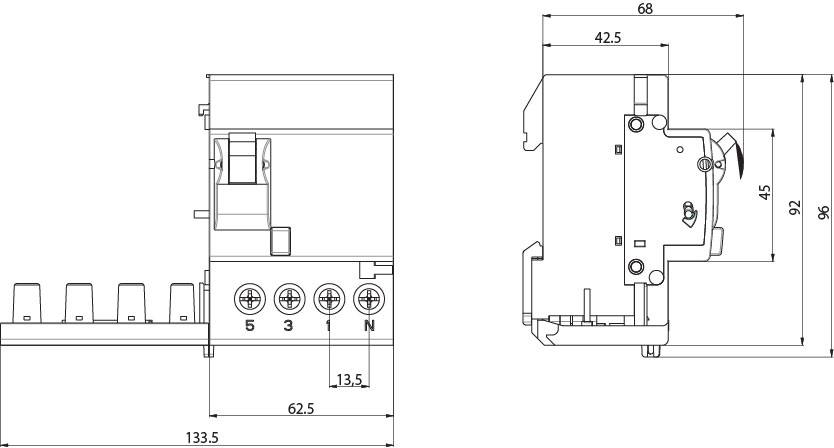

Images & Diagrams
Tags
Accessories 21
>
>
0
*DIFO-4 AC 6-32/0.03
