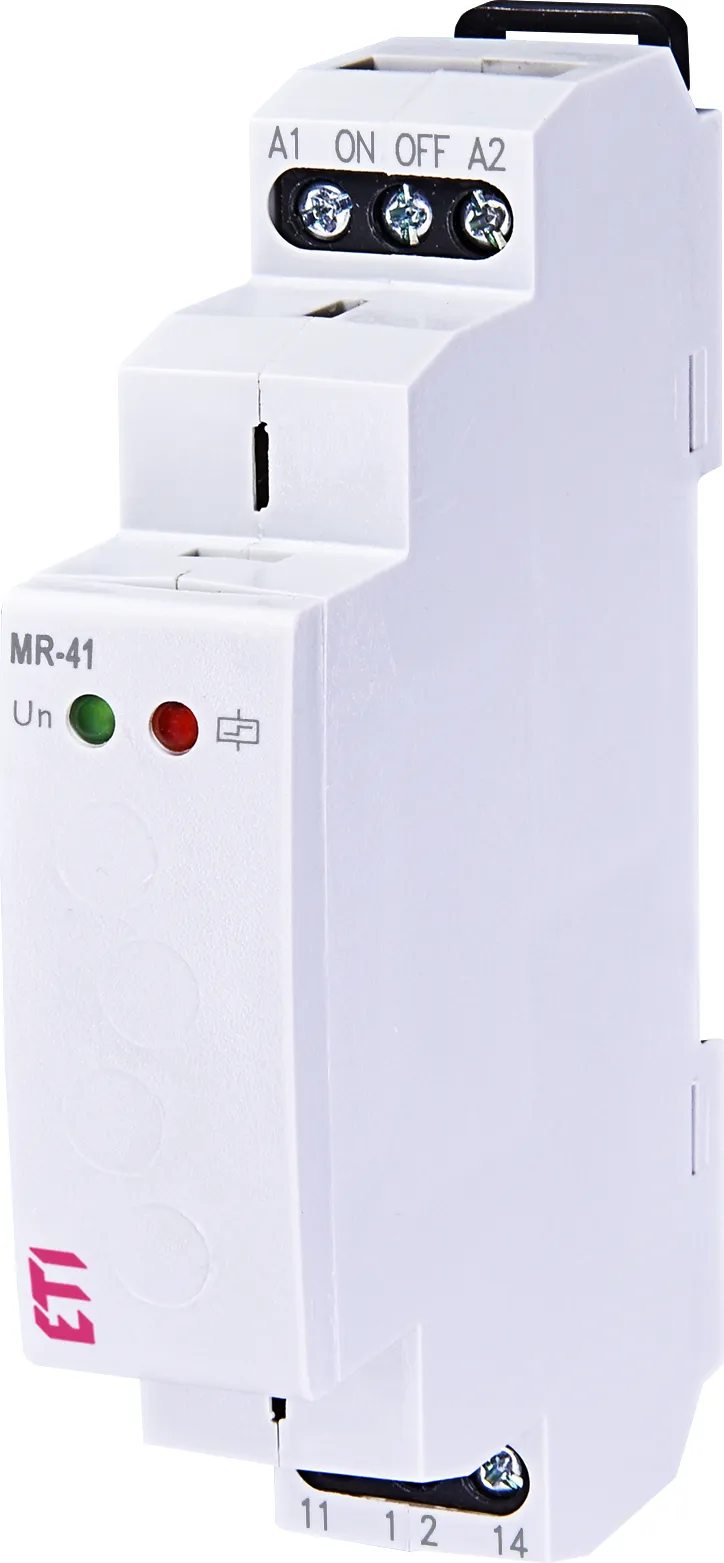

Memory relay MR-41 230V 002470094
Specifications
- ETI Code:
- 002470094
- Description:
- MR-41 230V
- Class name:
- Memory relay
- Storage temperature (°C):
- -30°C-70°C
- Function:
- Memory relay
- Supply voltage (V):
- 230V
- Voltage type:
- AC
- Number of CO contacts:
- 1
- Rated Frequency (Hz):
- 50Hz/60Hz
- Rated current (A):
- 16A
- Number of poles:
- 1
- Rated cross section:
- 2.5mm²
- Max. inrush current (A):
- 30A
- Overvoltage Category:
- III
- IP rating:
- IP40
- Pollution degree:
- 2
- Mounting type:
- TH 35
- Number of modules:
- 1
- Working temperature (°C):
- -20°C-55°C
- Switching voltage (V):
- 250V
- Power dissipation (W):
- 1.2W
- Electrical cycles:
- 70000
- Standards:
- EN 60669-2-2,EN 61010-1
Documents
Logistic Data
Product
- Net weight of the product
- 0.06 kg
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 91 mm
- logis_net_depth
- 64 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895472810
- Basic packaging weight
- 0.06 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895472827
- Transport packaging weight
- 0.6 kg
- Pallet quantity
- 4600
ETIM Clasification
- Classification
- EC001437
- Class name
- Switching relay
- Nominal current
- 16A
- Voltage type for actuating
- AC
- Degree of protection (IP)
- IP40
MR-41 230V
