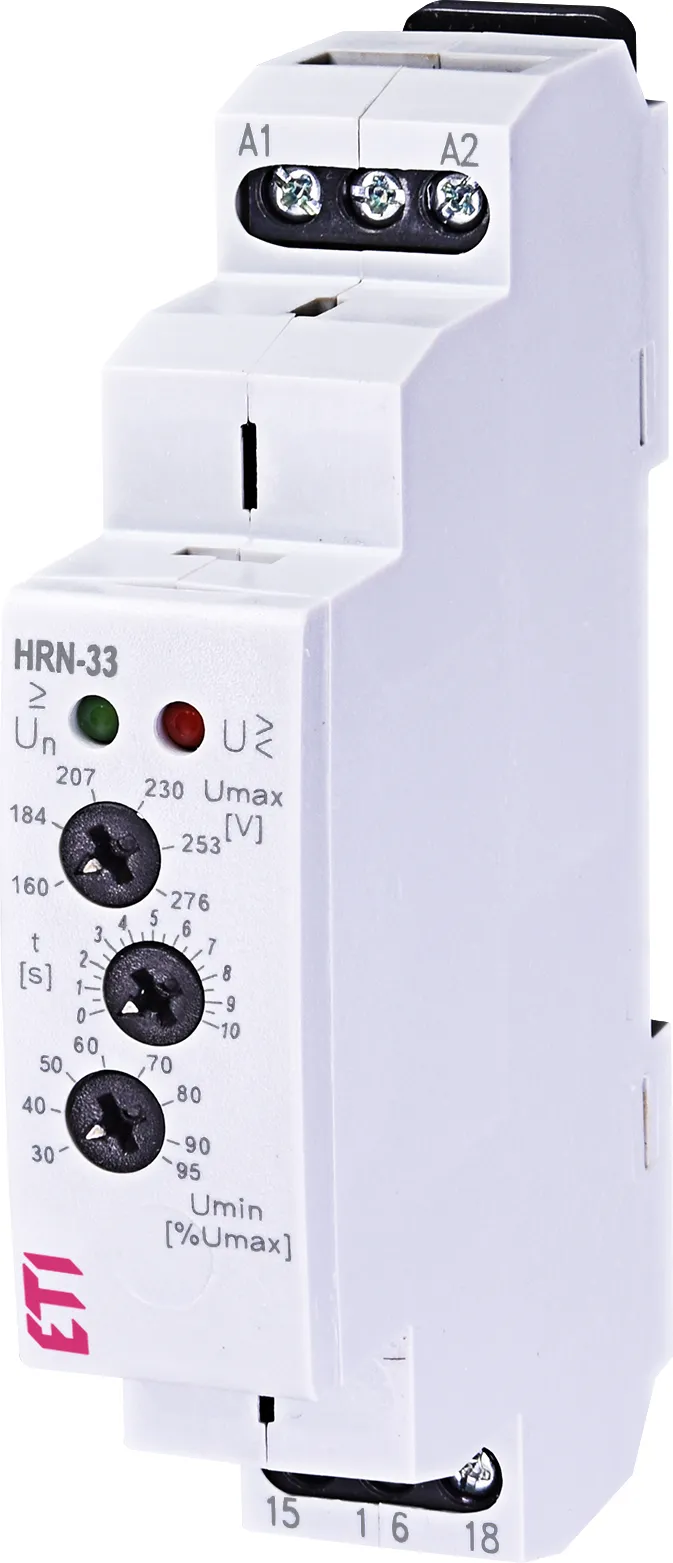

Control relay HRN-33 002470015 Obsolete
This product is obsolete and has been replaced with HRN-31.
Compare products
Specifications
- ETI Code:
- 002470015
- Description:
- *HRN-33
- Class name:
- Control relay
- Number of CO contacts:
- 1
- Maximum load capacity at AC1 (VA):
- 4000VA
- Function:
- Monitoring and Control relays
- Supply voltage (V):
- 48V-276V
- Type of control:
- Umax,Umin
- Number of contacts:
- 1
- Voltage type:
- AC
- Rated current (A):
- 16A
Documents
Logistic Data
Product
- Net weight of the product
- 0.065 kg
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 91 mm
- logis_net_depth
- 64 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895241591
- Basic packaging weight
- 0.06 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895241607
- Transport packaging weight
- 0.65 kg
- Pallet quantity
- 10650
ETIM Clasification
- Classification
- EC001438
- Class name
- Voltage monitoring relay
- Type of electric connection
- Clip connection
- Single-phase under voltage possible
- Yes
- Single-phase over voltage possible
- Yes
- Voltage measuring range 1
- 160…276V
- Type of voltage measuring range
- AC
- Response value voltage
- 48…276V
- Number of contacts as change-over contact
- 1
- Width
- 18mm
- Height
- 90mm
- Depth
- 65mm
