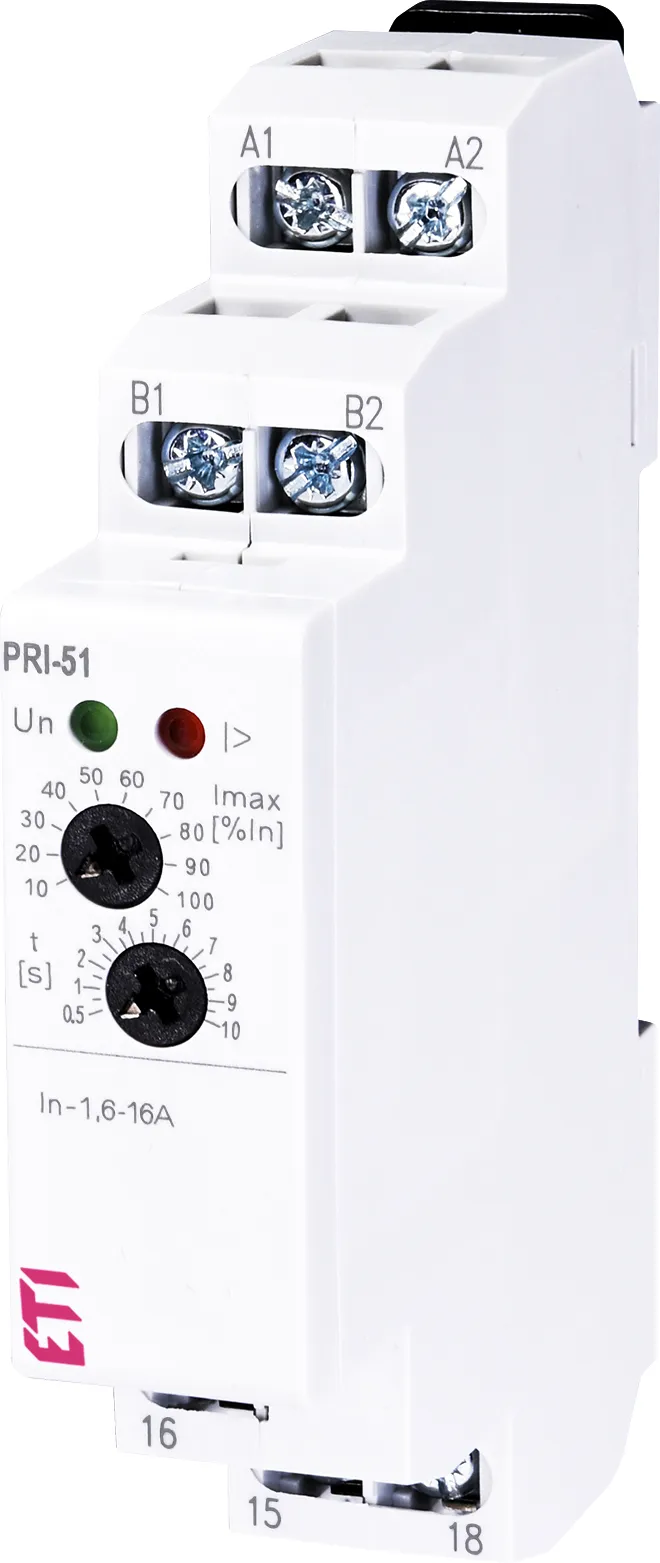

Control relay PRI-51/16 002470019
Specifications
- ETI Code:
- 002470019
- Description:
- PRI-51/16
- Class name:
- Control relay
- Number of CO contacts:
- 1
- DC rated control supply voltage Uc (V):
- 24V
- Maximum load capacity at AC1 (VA):
- 2500VA
- Function:
- Monitoring and Control relays
- Supply voltage (V):
- 24V-240V
- Number of contacts:
- 1
- Voltage type:
- AC/DC
- Rated current (A):
- 8A
Documents
Logistic Data
Product
- Net weight of the product
- 0.07 kg
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 91 mm
- logis_net_depth
- 64 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895423713
- Basic packaging weight
- 0.06 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895423720
- Transport packaging weight
- 0.7 kg
- Pallet quantity
- 4600
ETIM Clasification
- Classification
- EC001440
- Class name
- Current monitoring relay
- Type of electric connection
- Clip connection
- Single-phase under current possible
- Yes
- Single-phase overcurrent possible
- Yes
- Rated control supply voltage AC 50 Hz
- 24…240V
- Voltage type for actuating
- AC/DC
- Current measuring range
- 1.6…16A
- Number of contacts as change-over contact
- 1
- Width
- 18mm
- Height
- 90mm
- Depth
- 65mm
PRI-51/16
