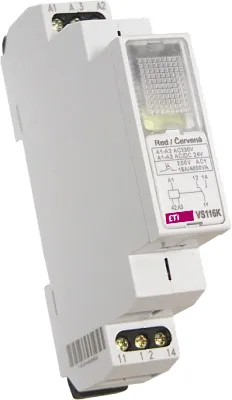

Power relay VS116K white 002471211
Specifications
- ETI Code:
- 002471211
- Description:
- VS116K white
- Class name:
- Power relay
- Number of CO contacts:
- 1
- AC rated control supply voltage Uc (V) :
- 24
- DC rated control supply voltage Uc (V):
- 24
- Maximum load capacity at AC1 (VA):
- 4000
- Function:
- Monitoring and Control relays
- Supply voltage (V):
- 230
- Type of control:
- Alarm and control
- Number of contacts:
- 1
- Voltage type:
- AC/DC
- Rated current (A):
- 16
Documents
Logistic Data
Product
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 91 mm
- logis_net_depth
- 64 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895472476
- Basic packaging weight
- 0.071 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895472483
- Transport packaging weight
- 0.125 kg
- Pallet quantity
- 4660
ETIM Clasification
- Classification
- EC001437
- Class name
- Switching relay
- Type of electric connection
- Clip connection
- Nominal current
- 16A
- Rated control supply voltage AC 50 Hz
- 230…230V
- Rated control supply voltage DC
- 24…24V
- Voltage type for actuating
- AC/DC
- Number of contacts as change-over contact
- 1
- Type of switch contact
- Single contact
- Degree of protection (IP)
- IP20
- Width
- 18mm
- Height
- 90mm
- Depth
- 65mm
