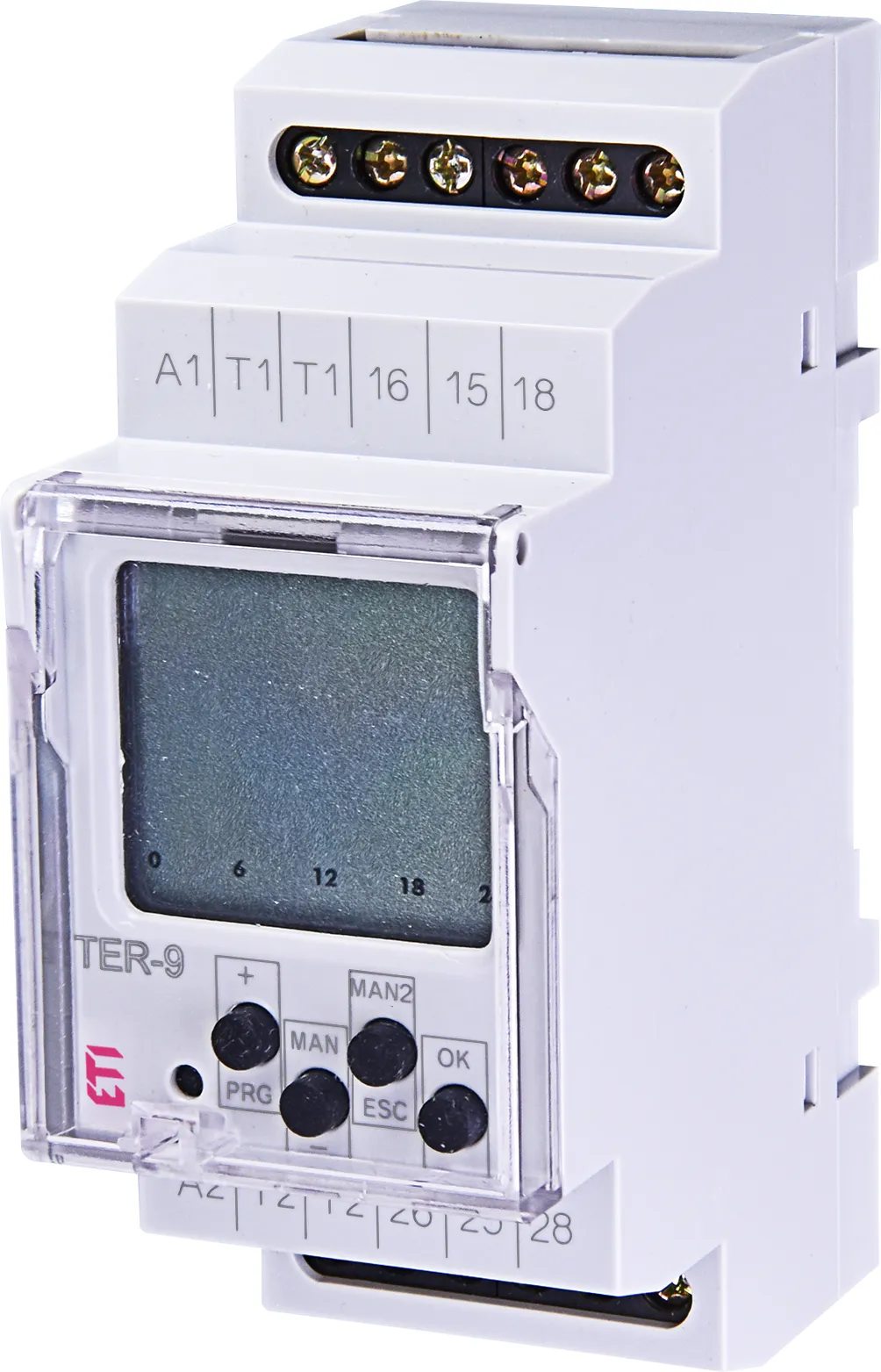

Control relay TER-9 24V AC/DC 002471803

Specifications

ETI Code:
002471803
Description:
TER-9 24V AC/DC
Class name:
Control relay
Maximum load capacity at AC1 (VA):
2500
Function:
Monitoring and Control relays
Supply voltage (V):
24
Temperature range (C):
-40...+110
Sensor type:
termistor NTC 12? at 25°C
Number of contacts:
1
Rated current (A):
8
Voltage type:
AC/DC

Documents

Product

EAN code for a single product

Net weight of the product
0.13  kg
Customs tariff
85364900
logis_net_width
35  mm
logis_net_height
90  mm
logis_net_depth
64  mm

Level 1 Packaging

EAN code for a basic packaging


Level 2 Packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838895424215
Transport packaging weight
0.13  kg
Pallet quantity
6154
Classification
EC001666
Class name
Temperature controller for distribution board
Voltage type
AC/DC
Rated current
8
Model
Digital
Rated voltage
24…24V
Adjustment range comfort
-40…110°C
Nominal switching current at 250 V, potential free
8A
Degree of protection (IP)
IP20
Width in number of modular spacings
2
Assembly depth
65mm
ETIM Classification – Version 7.0
