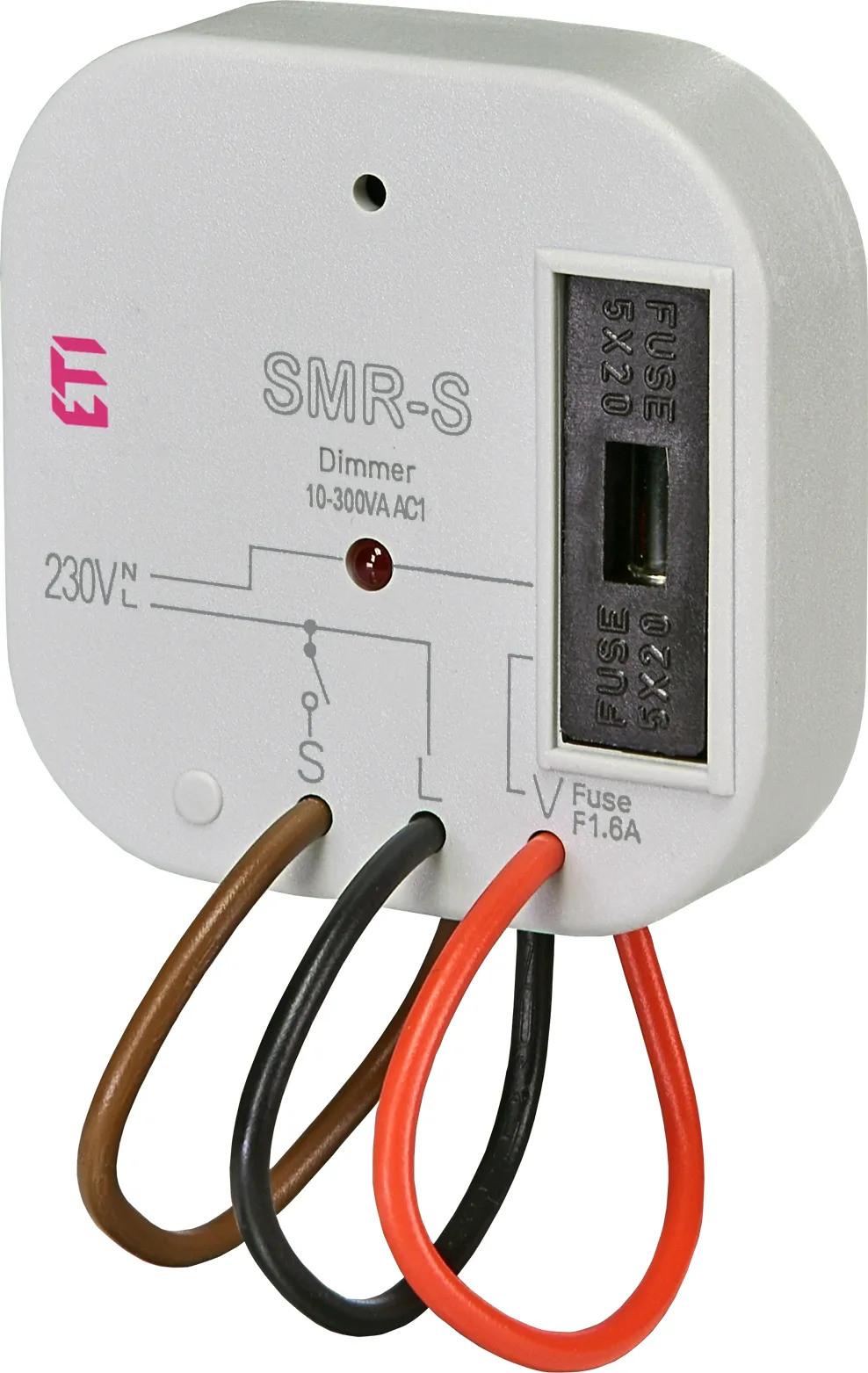

Dimming relay SMR-S 002470010
Specifications
- ETI Code:
- 002470010
- Description:
- SMR-S
- Class name:
- Dimming relay
- Maximum load capacity at AC1 (VA):
- 160
- Function:
- Dimmer
- Voltage type:
- AC
- Supply voltage (V):
- 230
- Type of contacts:
- Triac
- Number of contacts:
- 1
Documents
Logistic Data
Product
- Customs tariff
- 85364900
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 8594030338353
- Basic packaging weight
- 0.06 kg
Transport packaging
- Transport packaging quantity
- 14
- EAN code for a transport packaging
- 3838895231271
- Transport packaging weight
- 0.765 kg
- Pallet quantity
- 42910
ETIM Clasification
- Classification
- EC000025
- Class name
- Dimmer
- Assembly arrangement
- Basic element
- Serial dimmer
- Yes
- Type of load
- Universal
- Applicable with button
- Yes
- Mounting method
- Built-in installation
- Type of fastening
- Other
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Colour
- Grey
- Suitable for degree of protection (IP)
- IP30
- Frequency
- 50…50Hz
- Control voltage
- 230…230V
- Device width
- 49mm
- Device height
- 49mm
- Device depth
- 13,3mm
Images & Diagrams
