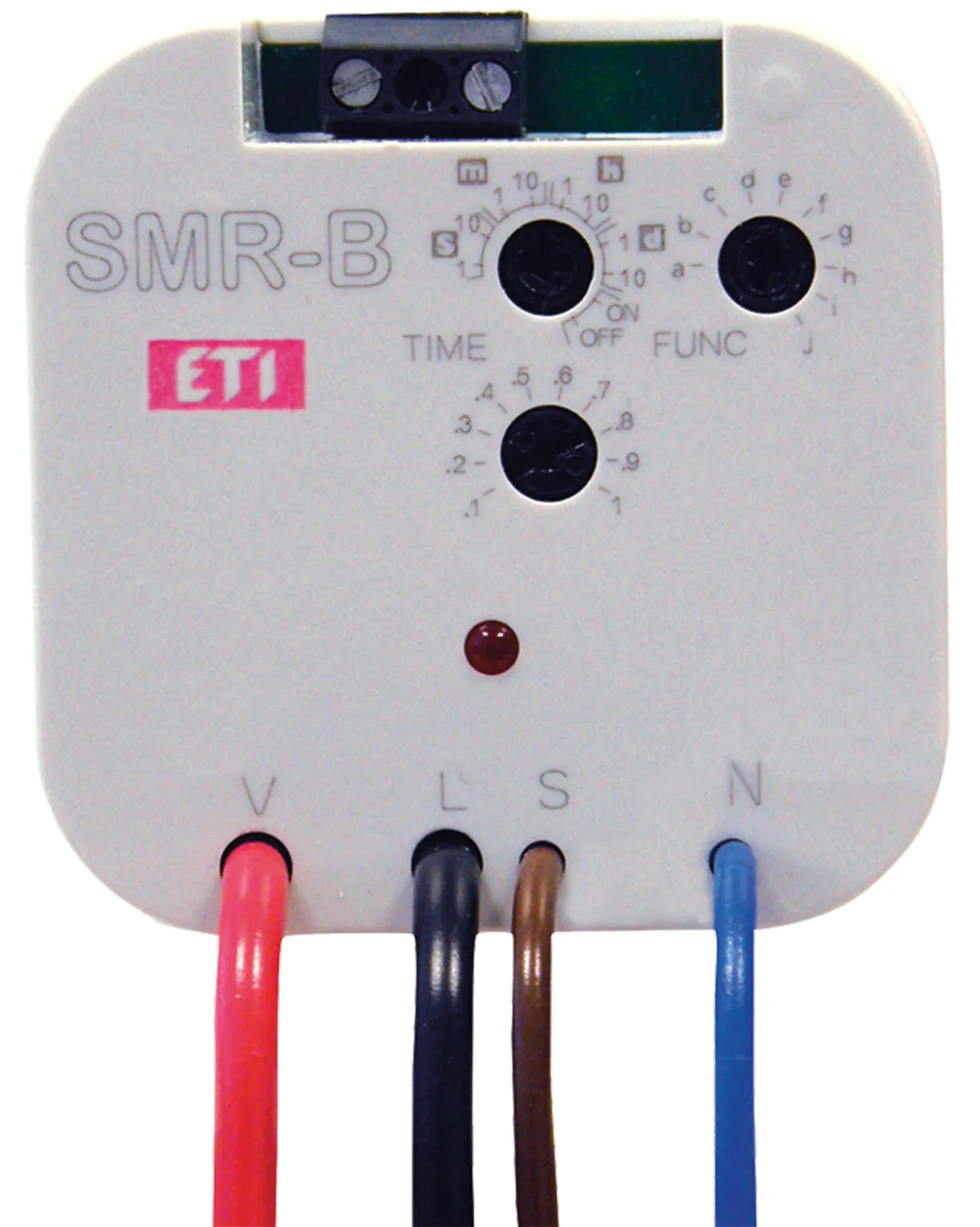

Time relay SMR-B 002470021
Specifications
- ETI Code:
- 002470021
- Description:
- SMR-B
- Class name:
- Time relay
- Maximum load capacity at AC1 (VA):
- 4000
- Function:
- Time relay
- Rated current (A):
- 16
- Voltage type:
- AC
- Number of NO contacts:
- 1
- Supply voltage (V):
- 230
- Number of contacts:
- 1
- Time range:
- 0.1 s-10 days
- Number of functions:
- 10
Documents
Logistic Data
Product
- Customs tariff
- 85364900
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895452218
- Basic packaging weight
- 0.07 kg
Transport packaging
- Transport packaging quantity
- 14
- EAN code for a transport packaging
- 3838895452225
- Transport packaging weight
- 0.71 kg
- Pallet quantity
- 42910
ETIM Clasification
- Classification
- EC001439
- Class name
- Timer relay
- Type of electric connection
- Soldering flag connection
- Function delay-on energization
- Yes
- Function delay on de-energization
- Yes
- Function floating contact on energization
- Yes
- Function floating contact on de-energization
- Yes
- Rated control supply voltage AC 50 Hz
- 230…230V
- Rated control supply voltage AC 60 Hz
- 230…230V
- Voltage type for actuating
- AC
- Nominal current
- 16A
- Time range
- 0.1…864000s
- Number of outputs, undelayed, normally open contact
- 1

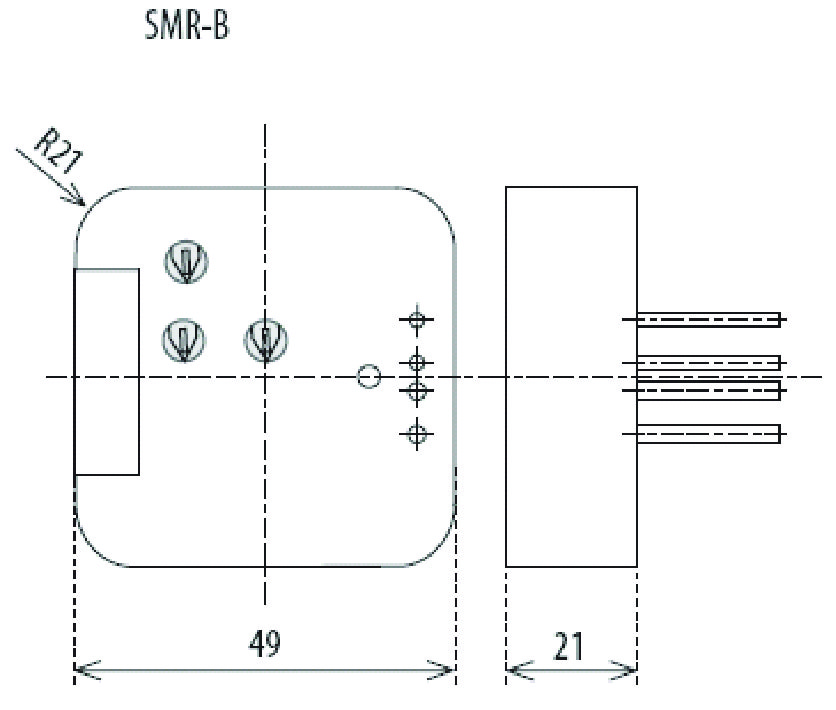

- Width
- 49mm
- Height
- 49mm
- Depth
- 13,3mm
Images & Diagrams
