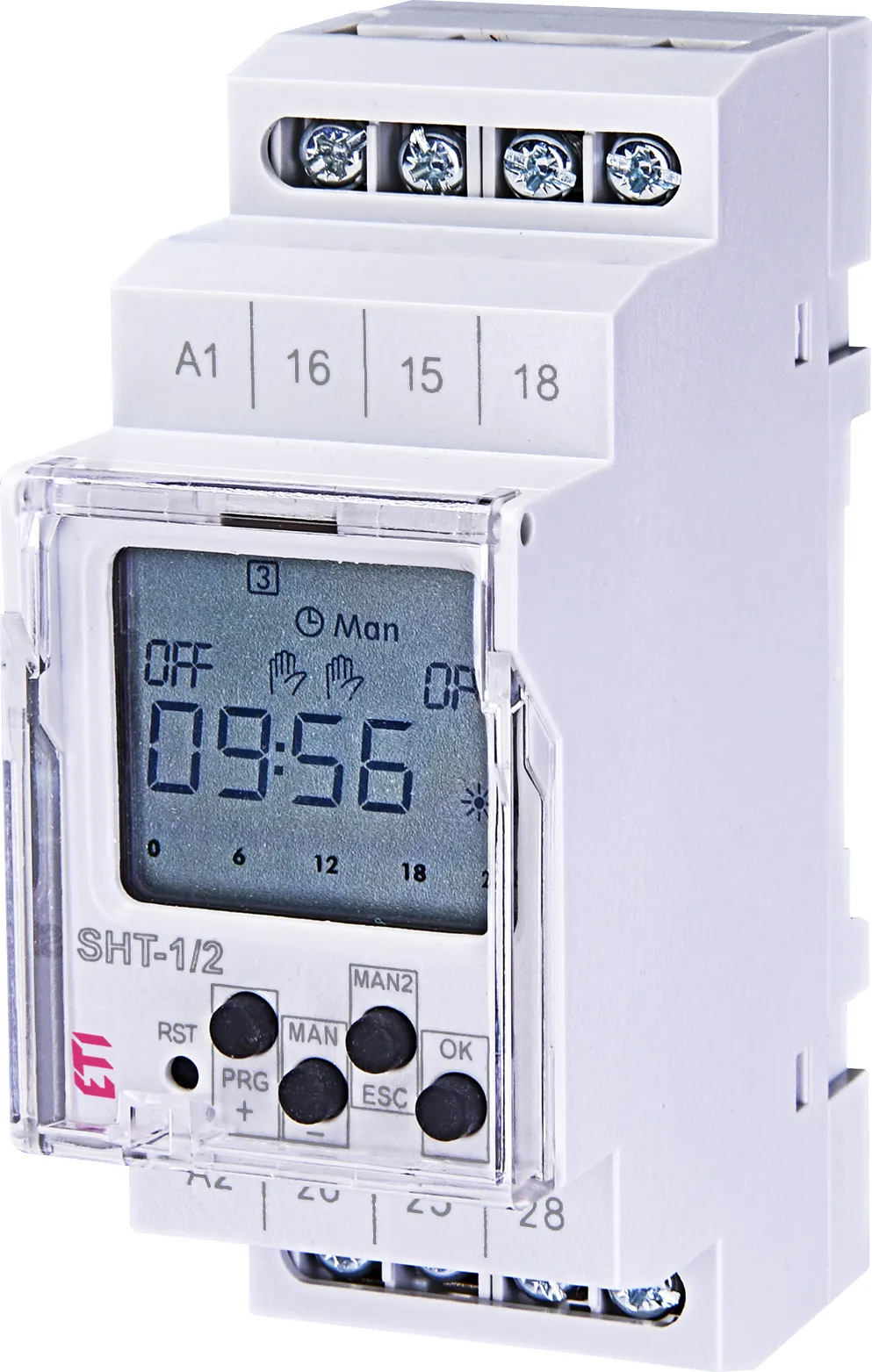

Time relay - digital SHT 1/2 UNI 002470054
Specifications
- ETI Code:
- 002470054
- Description:
- SHT 1/2 UNI
- Class name:
- Time relay - digital
- Maximum load capacity at AC1 (VA):
- 4000
- Function:
- Time relay
- Rated current (A):
- 16
- Voltage type:
- AC/DC
- Number of CO contacts:
- 1
- Supply voltage (V):
- 12 - 240
- Number of contacts:
- 2
- Time range:
- daily, weekly
Documents
Logistic Data
Product
- Customs tariff
- 85364900
- logis_net_width
- 113 mm
- logis_net_height
- 120 mm
- logis_net_depth
- 63 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 8595188121163
- Transport packaging weight
- 0.13 kg
- Pallet quantity
- 2166
Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
SHT 1/2 UNI
