Time relay ATS-1DR 230 002470297
Specifications
- ETI Code:
- 002470297
- Description:
- ATS-1DR 230
- Class name:
- Time relay
- Maximum load capacity at AC1 (VA):
- 4000
- Function:
- Time relay
- Rated current (A):
- 16
- Voltage type:
- AC
- Number of NO contacts:
- 1
- Supply voltage (V):
- 230
- Number of contacts:
- 1
- Time range:
- 15 min - 24 hours
- Number of functions:
- 1
Documents
Logistic Data
Product
- Customs tariff
- 85364900

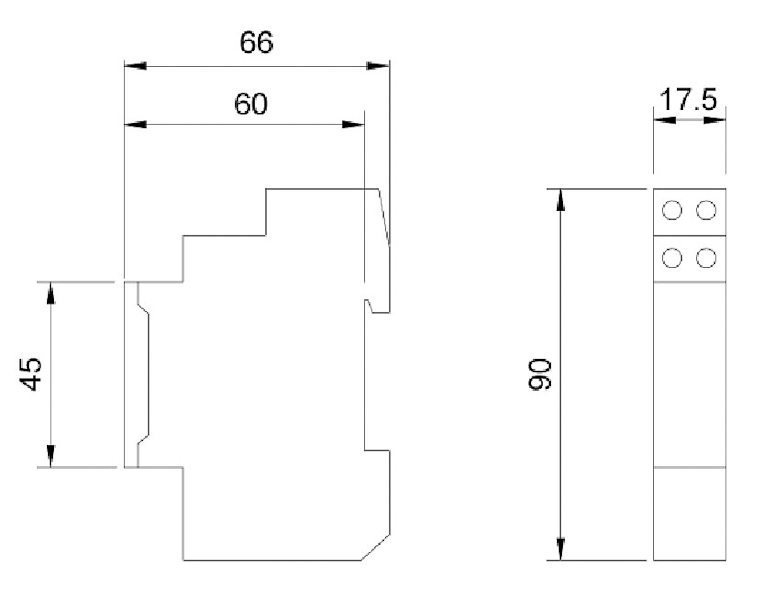

- logis_net_width
- 18 mm
- logis_net_height
- 94 mm
- logis_net_depth
- 66 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895945154
- Basic packaging weight
- 0.08 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838400118080
- Transport packaging weight
- 0.129 kg
- Pallet quantity
- 4540
