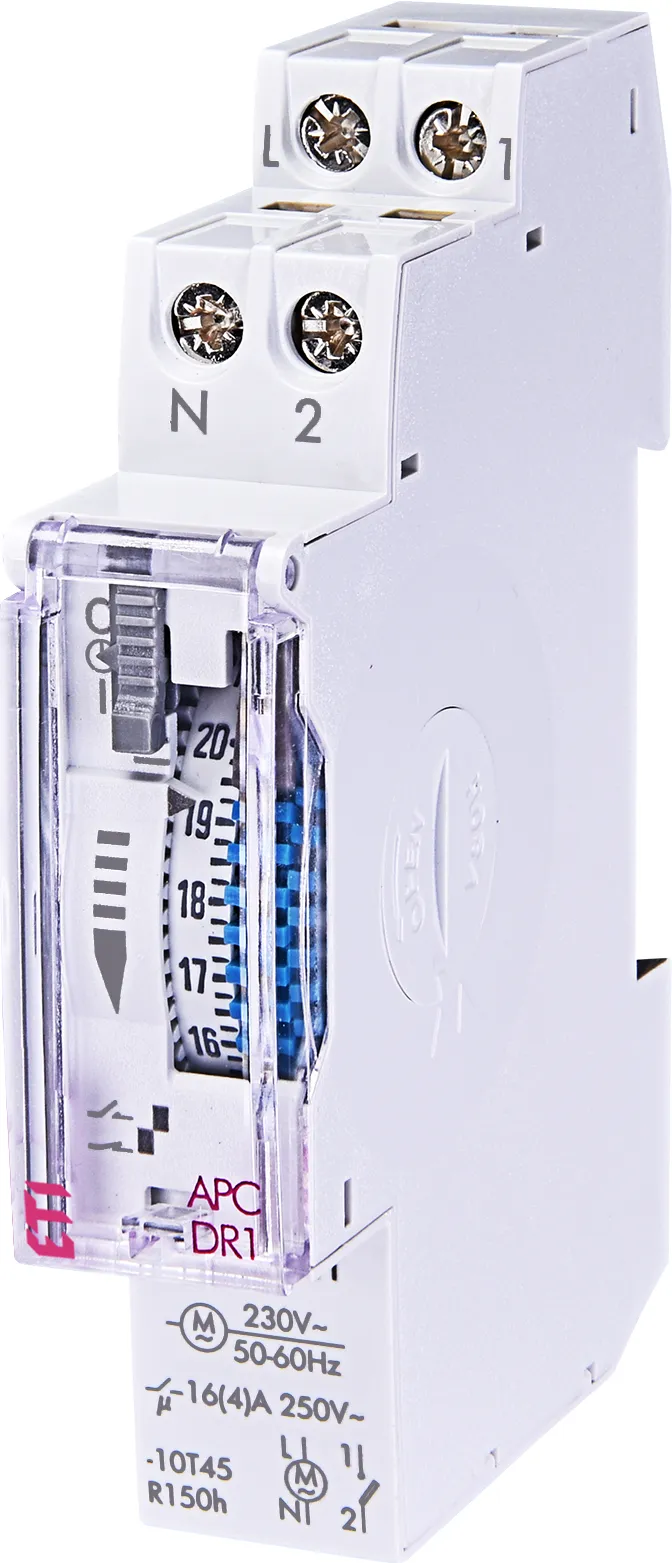

Time relay APC-DR1 002472002
Specifications
- ETI Code:
- 002472002
- Description:
- APC-DR1
- Class name:
- Time relay
- Maximum load capacity at AC1 (VA):
- 4000
- Function:
- Time relay
- Rated current (A):
- 16
- Voltage type:
- AC
- Number of NO contacts:
- 1
- Supply voltage (V):
- 230
- Number of contacts:
- 1
- Time range:
- 15 min - 24 hours
- Number of functions:
- 1
Documents
Logistic Data
Product
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 91 mm
- logis_net_depth
- 64 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 5904722951471
- Basic packaging weight
- 0.088 kg
Transport packaging
- Transport packaging quantity
- 24
- EAN code for a transport packaging
- 3838895689751
- Transport packaging weight
- 2.192 kg
- Pallet quantity
- 3600
ETIM Clasification
- Classification
- EC002304
- Class name
- Analogous time switch for distribution board
- Mounting method
- DIN rail
- Number of channels
- 1
- Supply voltage
- 230…230V
- Voltage type (supply voltage)
- AC
- Frequency supply voltage
- 50…50Hz
- Autonomy in hours
- 150
- 24 h program
- Yes
- Shortest switching time channel 1
- 15min
- Program shift divide 1
- 4min
- Suitable for manual operation
- Yes
- Nominal switching current at 250 V AC
- 16A
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 1
- Width
- 17,5mm
- Height
- 90mm
- Depth
- 65mm
