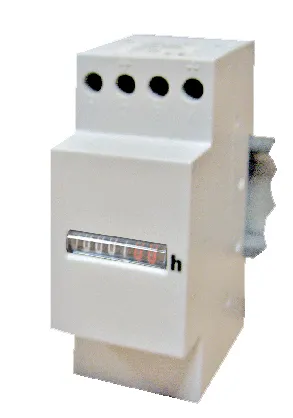

Hour counter HM-1 002472045
Specifications
- ETI Code:
- 002472045
- Description:
- HM-1
- Class name:
- Hour counter
- Function:
- Monitoring and Control relays
- Voltage type:
- AC
- Supply voltage (V):
- 230
- Time range:
- 99999,99
Documents
Logistic Data
Product
- Customs tariff
- 91061000
- logis_net_width
- 35 mm
- logis_net_height
- 86 mm
- logis_net_depth
- 60 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895508380
- Transport packaging weight
- 0.035 kg
- Pallet quantity
- 5090
ETIM Clasification
- Classification
- EC001641
- Class name
- Hour meter
- Mounting method
- DIN rail
- Model
- Analogue
- Count area
- 10000h
- Reset function
- None
- Number of digits
- 7
- Voltage type
- AC
- Frequency input voltage
- 50…50Hz
- Width in number of modular spacings
- 2
- Degree of protection (IP)
- IP40
