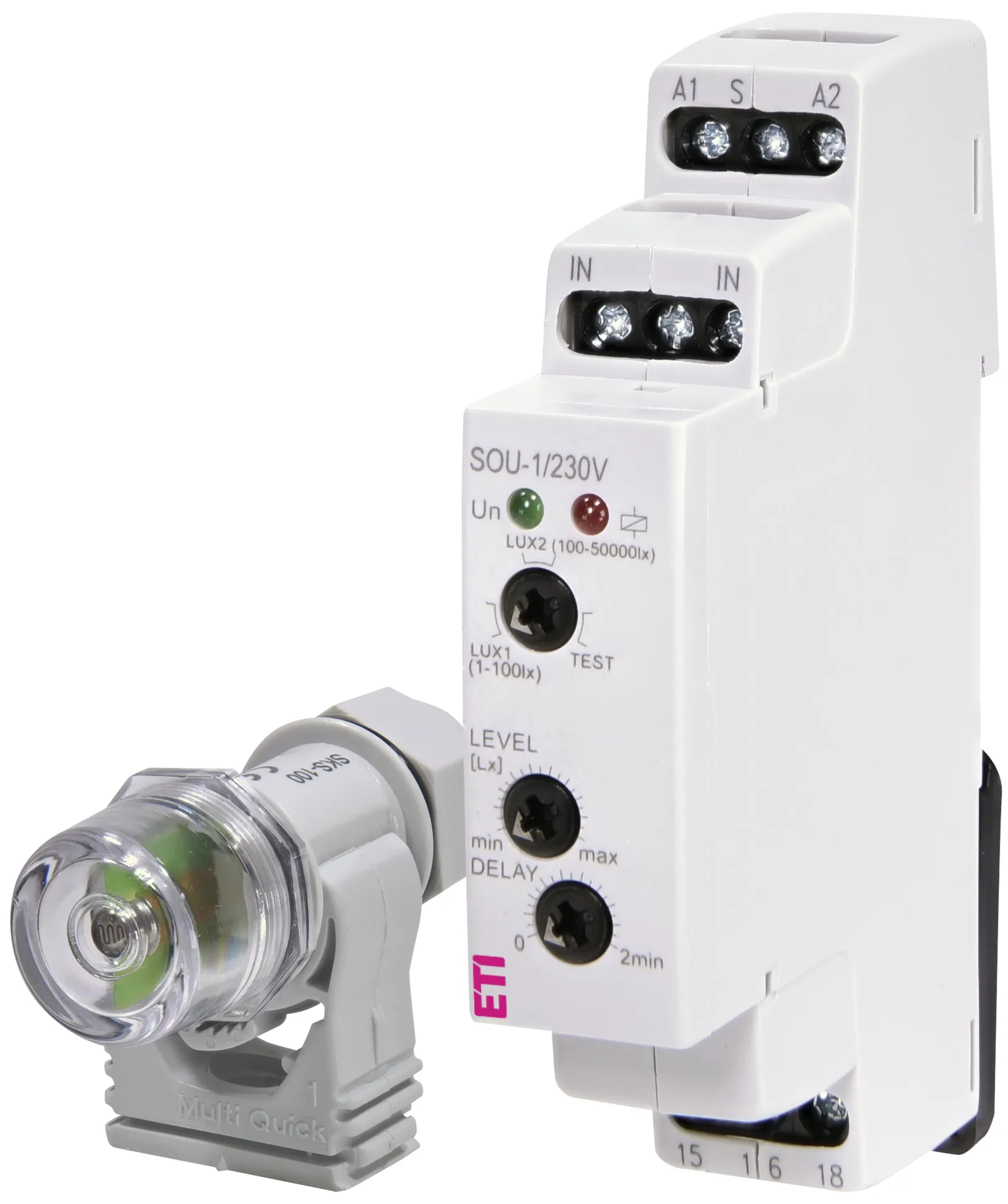

Twilight switch SOU-1/230V+senzor 002470011
Specifications
- ETI Code:
- 002470011
- Description:
- SOU-1/230V+senzor
- Class name:
- Twilight switch
- Maximum load capacity at AC1 (VA):
- 4000
- Number of CO contacts:
- 1
- Function:
- Monitoring and Control relays
- Supply voltage (V):
- 230
- Luminous flux (Lx):
- 1 - 50000
- Number of contacts:
- 1
- Rated current (A):
- 16
- Voltage type:
- AC
- Category:
- Twillight and staircase switches
Documents
Logistic Data
Product
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 91 mm
- logis_net_depth
- 64 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 8594030338360
- Transport packaging weight
- 0.09 kg
- Pallet quantity
- 2166
ETIM Clasification
- Classification
- EC001645
- Class name
- Twilight switch for distribution board
- Rated voltage
- 230V
- Rated frequency
- 50…50Hz
- Rated switch current
- 16A
- Adjustment range brightness value
- 1…50000lx
- Mounting method
- DIN rail
- Width in number of modular spacings
- 1
- Built-in depth
- 68mm
- Degree of protection (IP)
- IP20
- Degree of protection (IP) light sensor
- IP65
