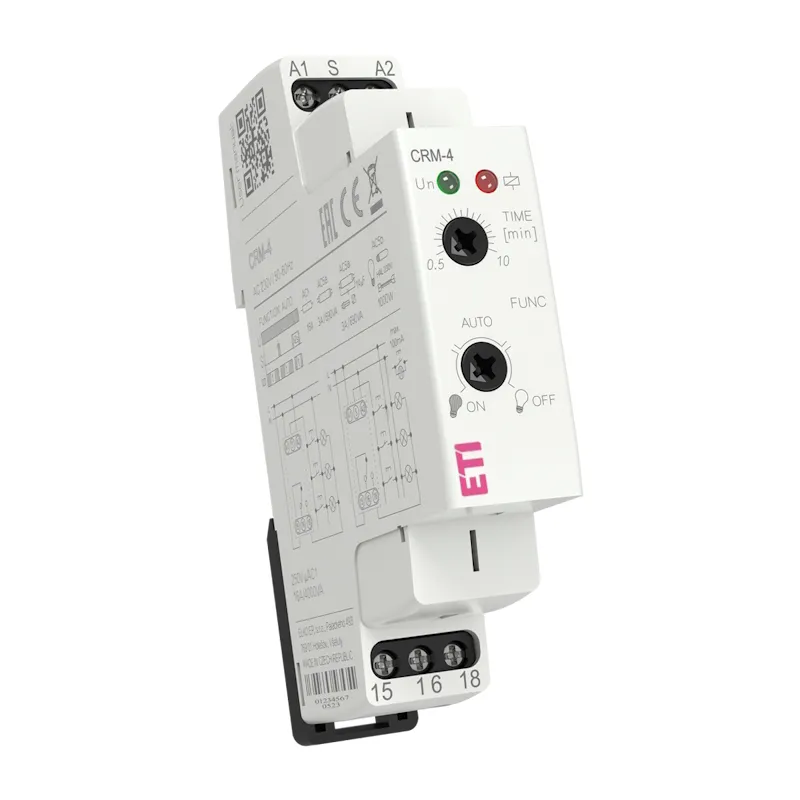

Staircase switch CRM-4 002470012
Specifications
- ETI Code:
- 002470012
- Description:
- CRM-4
- Class name:
- Staircase switch
- Maximum load capacity at AC1 (VA):
- 4000
- Number of CO contacts:
- 1
- Function:
- Time relay
- Supply voltage (V):
- 230
- Number of contacts:
- 1
- Rated current (A):
- 16
- Voltage type:
- AC
- Category:
- Twillight and staircase switches
Documents
Logistic Data
Product
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 91 mm
- logis_net_depth
- 64 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 8594030338247
- Basic packaging weight
- 0.074 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895231288
- Transport packaging weight
- 0.743 kg
- Pallet quantity
- 4600
ETIM Clasification
- Classification
- EC000297
- Class name
- Staircase lighting timer
- Function
- Electronic
- Mounting method
- DIN rail
- Width in number of modular spacings
- 1
- Built-in depth
- 68mm
- Control voltage 1
- 230…230V
- Type of control voltage 1
- AC
- Frequency control voltage 1
- 50…60Hz
- Rated switch current
- 16A
- Release-delay
- 0.08…10min
- Supply voltage
- 230…230V
- Voltage type (supply voltage)
- AC
