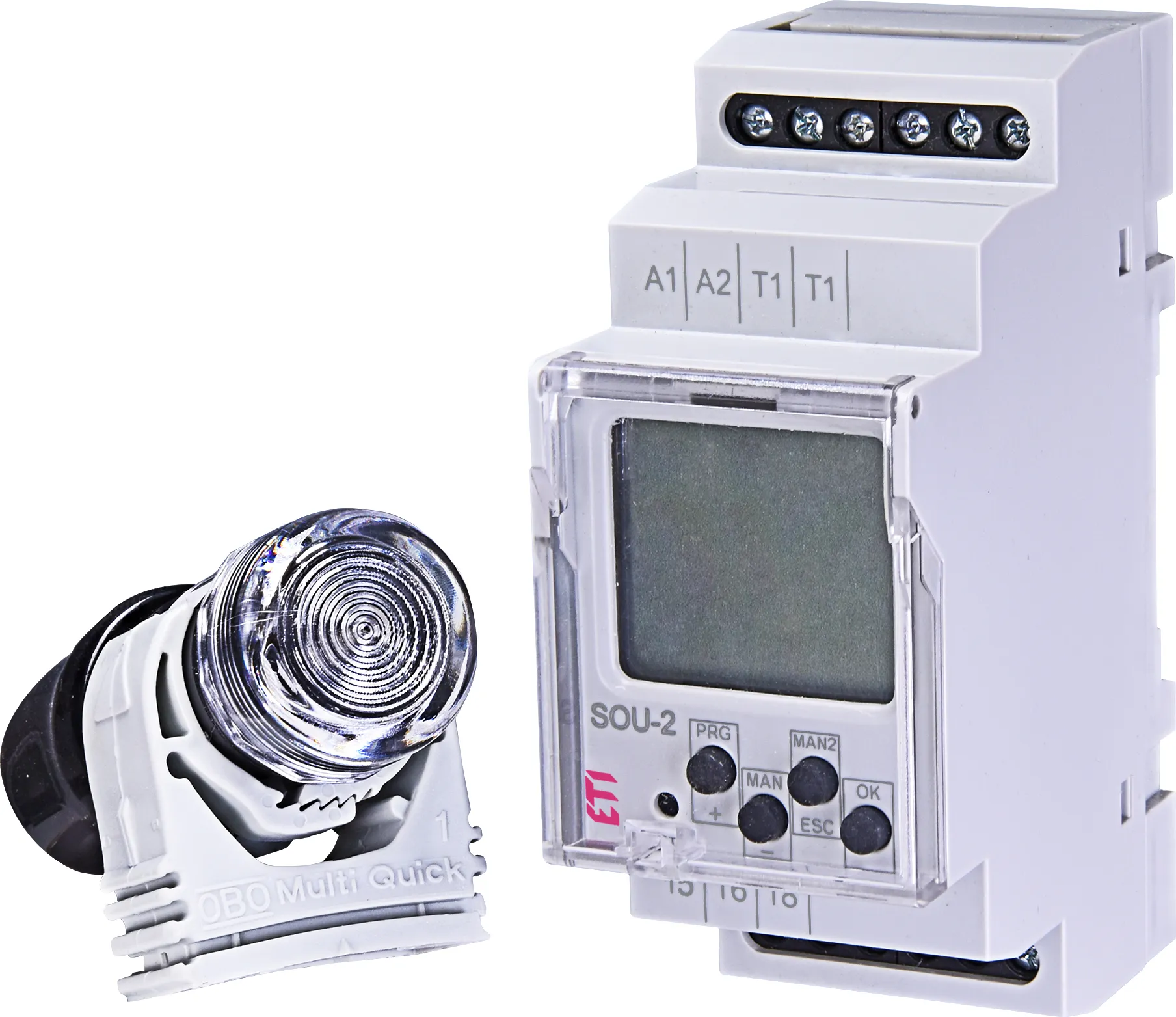

Twilight switch SOU-2+senz. 230V 002470020
Specifications
- ETI Code:
- 002470020
- Description:
- SOU-2+senz. 230V
- Class name:
- Twilight switch
- Maximum load capacity at AC1 (VA):
- 2200
- Number of CO contacts:
- 1
- Function:
- Monitoring and Control relays
- Supply voltage (V):
- 230
- Luminous flux (Lx):
- 1 - 50000
- Number of contacts:
- 1
- Rated current (A):
- 8
- Voltage type:
- AC
- Category:
- Twillight and staircase switches
Documents
Logistic Data
Product
- Customs tariff
- 85364900
- logis_net_width
- 35 mm
- logis_net_height
- 95 mm
- logis_net_depth
- 64 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895429234
- Basic packaging weight
- 0.11 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895429241
- Transport packaging weight
- 1.2 kg
- Pallet quantity
- 21660
Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
SOU-2+senz. 230V
