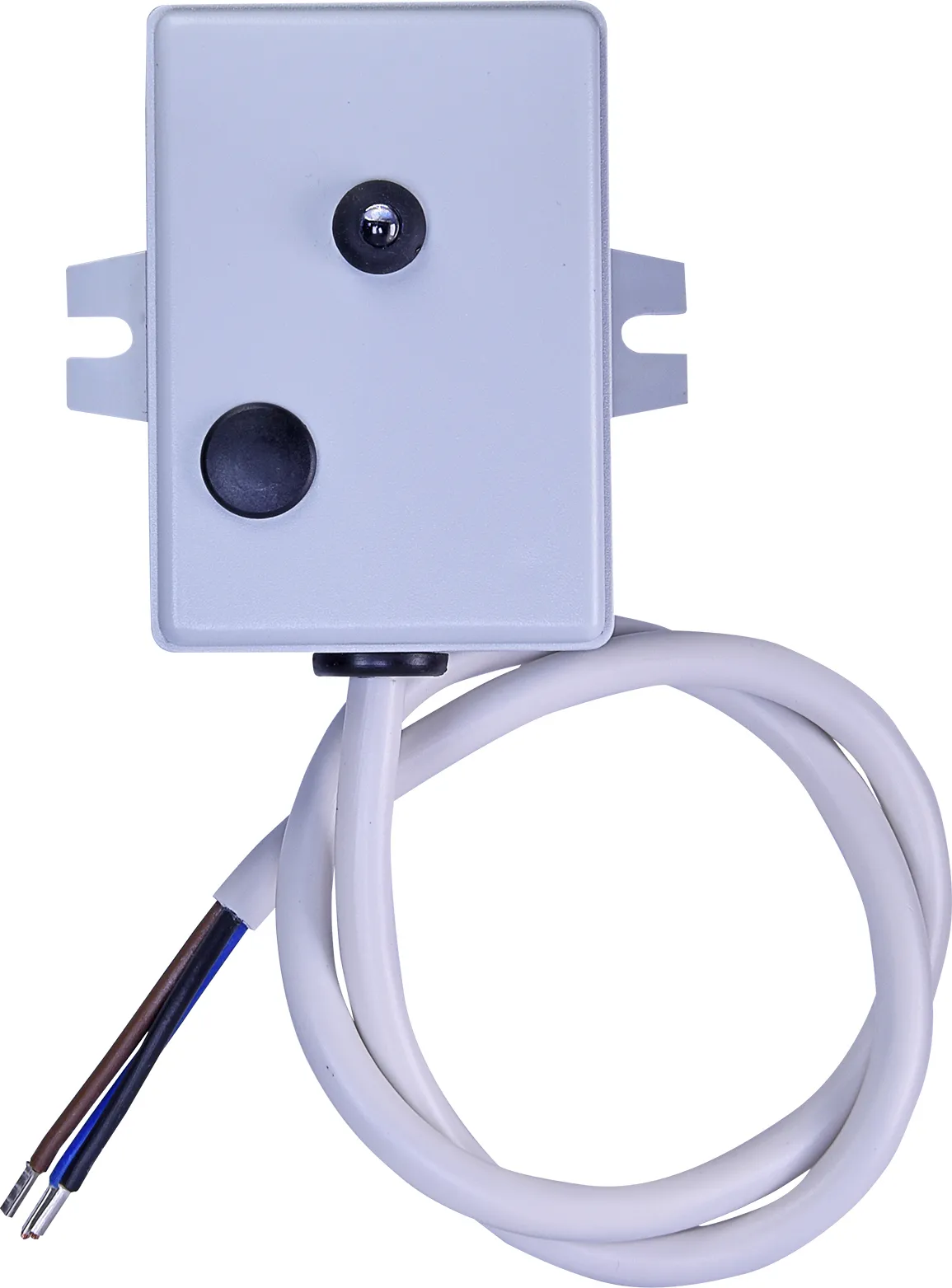

Twilight switch ETS-16b 002471102
Specifications
- ETI Code:
- 002471102
- Description:
- ETS-16b
- Class name:
- Twilight switch
- Maximum load capacity at AC1 (VA):
- 4000VA
- Number of NO contacts:
- 2
- Function:
- Monitoring and Control relays
- Supply voltage (V):
- 180V-230V
- Luminous flux (Lx):
- 2lx-50lx
- Number of contacts:
- 1
- Rated current (A):
- 16A
- Voltage type:
- AC
- Category:
- Twillight and staircase switches
Documents
Logistic Data
Product
- Net weight of the product
- 0.15 kg
- Customs tariff
- 85364900
- logis_net_width
- 68 mm
- logis_net_height
- 69 mm
- logis_net_depth
- 30 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 5904722934672
- Basic packaging weight
- 0.07 kg
Transport packaging
- Transport packaging quantity
- 6
- EAN code for a transport packaging
- 3838895792314
- Transport packaging weight
- 0.428 kg
- Pallet quantity
- 9000
ETIM Clasification
- Classification
- EC000189
- Class name
- Twilight switch
- Contacts
- 1 make contact (NO)
- Engaging brightness
- 2…2lx
- Switching-off brightness
- 50…50lx
- Switch-off delay
- 20s
- Switching-on delay
- 20s
- Mounting method
- Surface mounted (plaster)
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Colour
- Grey
- Nominal voltage
- 230V
- Max. switching current (resistive load)
- 16A
- Suitable for degree of protection (IP)
- IP65
ETS-16b
