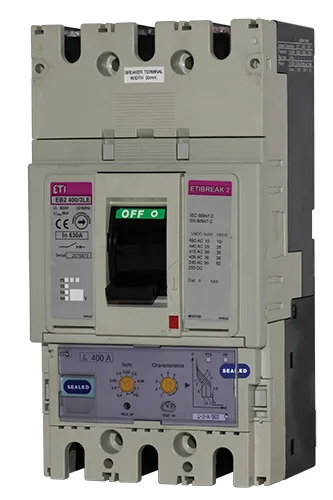

Molded Case Circuit Breaker EB2 400/3LCD 250A 3p APCWH 004672145
Specifications
- ETI Code:
- 004672145
- Description:
- EB2 400/3LCD 250A 3p APCWH
- Class name:
- Molded Case Circuit Breaker
- Catalogue Group:
- EB2
- Rated current (A):
- 250A
- Number of poles:
- 3
- Connection type:
- front connection
- Rated impulse withstand voltage Uimp (kV):
- 8kV
- Rated short-circuit breaking capacity at 415V Icu/Ics (kA):
- 50kA
- Rated operational voltage AC (V):
- 690V
- Rated insulation voltage (V):
- 800V
- Thermal adjustment:
- 0,4-1
- Magnetic adjustment:
- adjustable
- Adjustable or fixed:
- adjustable
- Standards:
- 60947
Documents
Logistic Data
Product
- Net weight of the product
- 4.3 kg
- Customs tariff
- 85362090
- logis_net_width
- 140 mm
- logis_net_height
- 260 mm
- logis_net_depth
- 145 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895840350
- Transport packaging weight
- 4.3 kg
- Pallet quantity
- 145
ETIM Clasification
- Classification
- EC000228
- Class name
- Power circuit-breaker for trafo/generator/installation protection
- Rated permanent current Iu
- 250A
- Rated voltage
- 690…690V
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 50kA
- Number of poles
- 3
