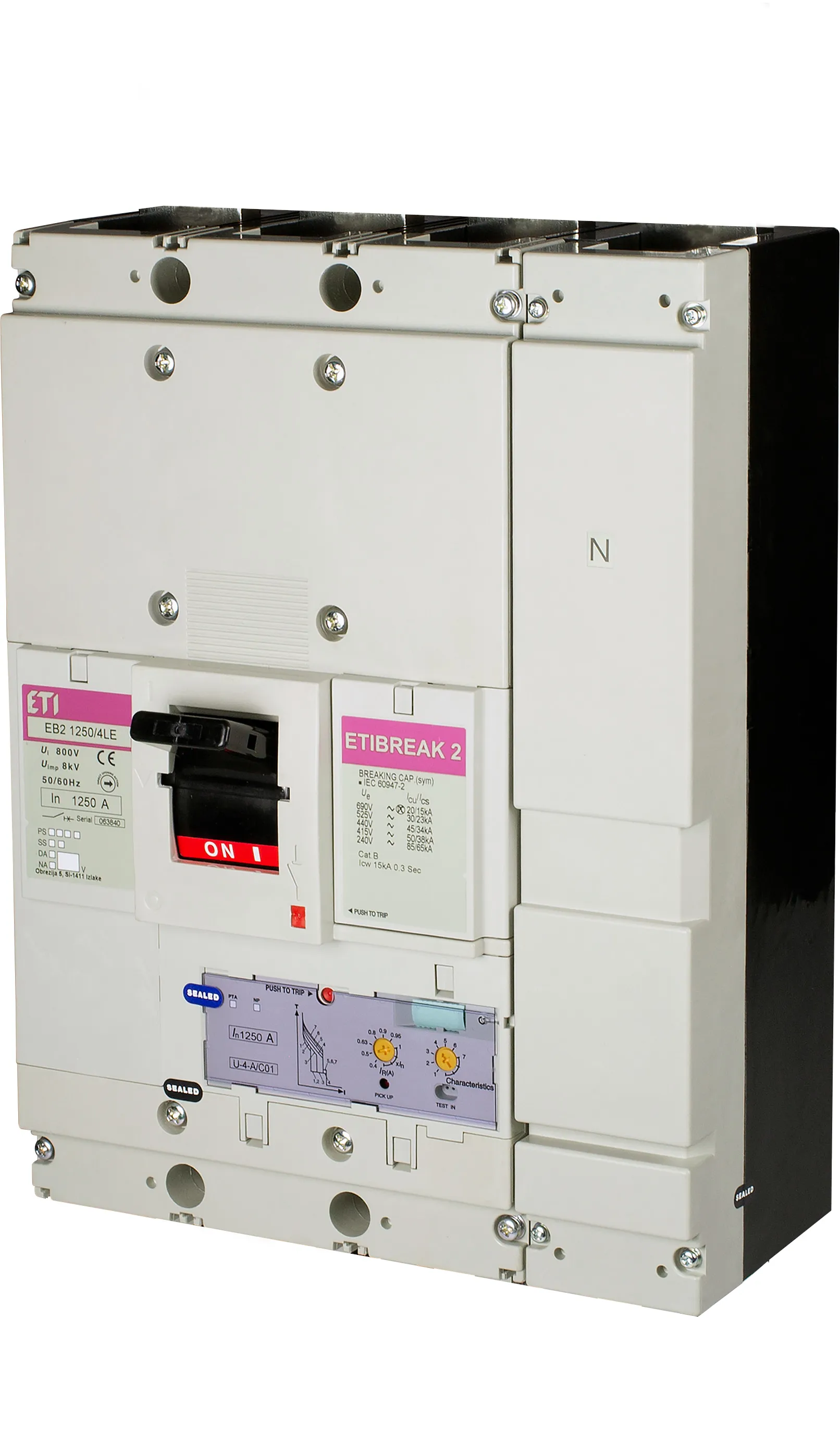

Molded Case Circuit Breaker EB2 1600/4E-RC 1600A 4p APGN 004672282
Specifications
- ETI Code:
- 004672282
- Description:
- EB2 1600/4E-RC 1600A 4p APGN
- Class name:
- Molded Case Circuit Breaker
- Catalogue Group:
- EB2
- Rated current (A):
- 1600A
- Number of poles:
- 4
- Connection type:
- rear connection
- Rated impulse withstand voltage Uimp (kV):
- 8kV
- Rated short-circuit breaking capacity at 415V Icu/Ics (kA):
- 100kA/75kA
- Rated operational voltage AC (V):
- 690V
- Rated insulation voltage (V):
- 800V
- Thermal adjustment:
- 0,4-1
- Magnetic adjustment:
- adjustable
- Adjustable or fixed:
- adjustable
- Standards:
- 60947
Documents
Logistic Data
Product
- Net weight of the product
- 32 kg
- Customs tariff
- 85362090
- logis_net_width
- 281 mm
- logis_net_height
- 570 mm
- logis_net_depth
- 189 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895704010
- Transport packaging weight
- 32 kg
- Pallet quantity
- 25
ETIM Clasification
- Classification
- EC000228
- Class name
- Power circuit-breaker for trafo/generator/installation protection
- Rated permanent current Iu
- 1600A
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 100/75kA
- Overload release current setting
- 640…1600A
- Adjustment range short-term delayed short-circuit release
- 1600…16000A
- Adjustment range undelayed short-circuit release
- 8960…19200A
- Integrated earth fault protection
- Yes
- Type of electrical connection of main circuit
- Rail connection
- Device construction
- Built-in device fixed built-in technique
- With switched-off indicator
- Yes
- Number of poles
- 4
- Type of control element
- Rocker
- Motor drive integrated
- No
- Motor drive optional
- Yes
- Degree of protection (IP)
- IP20
