Motor contactor CEM65.00-24V-50/60Hz 004649100
Specifications
- ETI Code:
- 004649100
- Description:
- CEM65.00-24V-50/60Hz
- Class name:
- Motor contactor
- Function:
- Motor contactor
- Rated operation current Ie at AC1 (A):
- 110A
- Rated operation current Ie at AC3, 400 V (A):
- 65A
- Rated operational voltage AC (V):
- 1000V
- Rated AC control circuit voltage Uc (V):
- 24V
- Number of poles:
- 3
Documents
Logistic Data
Product
- Net weight of the product
- 1.12 kg
- Customs tariff
- 85364900
- logis_net_width
- 70 mm
- logis_net_height
- 117 mm
- logis_net_depth
- 116 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 7890355108734
- Transport packaging weight
- 1.18 kg
- Pallet quantity
- 714
ETIM Clasification
- Classification
- EC000066
- Class name
- Power contactor, AC switching
- Rated control supply voltage AC 50 Hz
- 24…24V
- Rated control supply voltage AC 60 Hz
- 24…24V
- Rated control supply voltage DC
- 24…24V
- Voltage type for actuating
- AC
- Rated operation current Ie at AC-1, 400 V
- 110A
- Rated operation current Ie at AC-3, 400 V
- 65A
- Rated operation power at AC-3, 400 V
- 30kW
- Modular version
- No
- Type of electrical connection of main circuit
- Frame clamp
- Number of normally open contacts as main contact
- 3

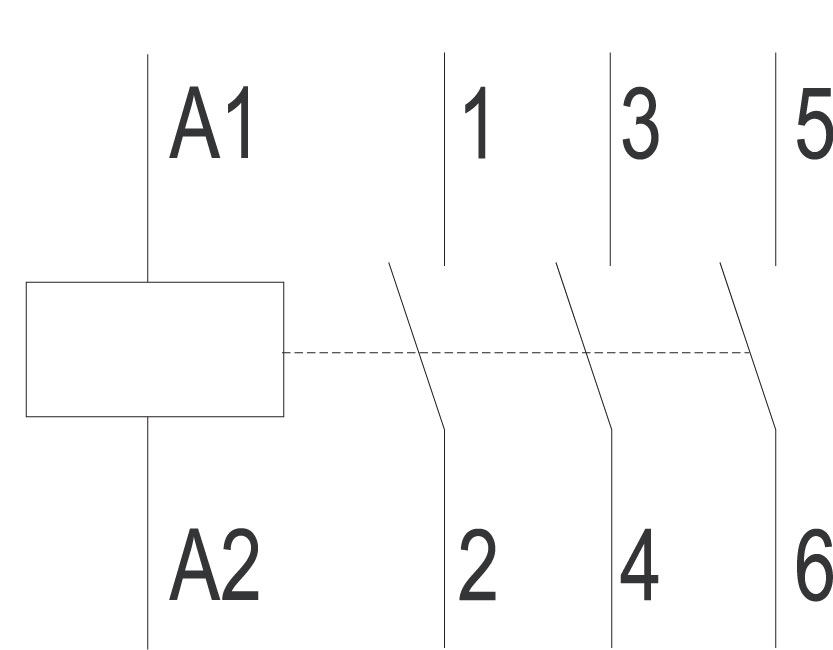

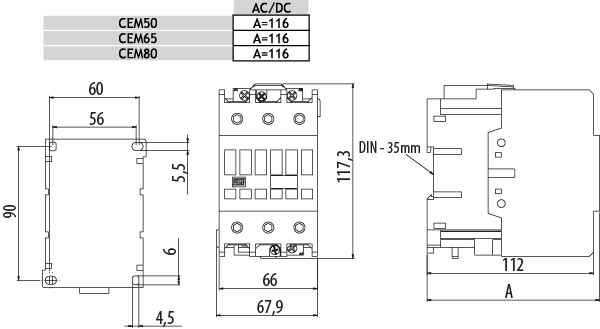

Images & Diagrams
