Motor contactor CEM450E.22-255V-AC/DC 004656306
Specifications
- ETI Code:
- 004656306
- Description:
- CEM450E.22-255V-AC/DC
- Class name:
- Motor contactor
- Function:
- Motor contactor
- Rated operation current Ie at AC1 (A):
- 600A
- Rated operation current Ie at AC3, 400 V (A):
- 450A
- Number of poles:
- 3
- Number of auxiliary NO contacts:
- 2
- Number of auxiliary NC contacts:
- 2
Documents
Logistic Data
Product
- Net weight of the product
- 12 kg
- Customs tariff
- 85364900
- logis_net_width
- 182 mm
- logis_net_height
- 291 mm
- logis_net_depth
- 227 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 7909522136668
- Transport packaging weight
- 12 kg
- Pallet quantity
- 40
ETIM Clasification
- Classification
- EC000066
- Class name
- Power contactor, AC switching
- Rated control supply voltage AC 50 Hz
- 110…255V
- Rated control supply voltage AC 60 Hz
- 110…255V
- Rated control supply voltage DC
- 110…255V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-1, 400 V
- 600A
- Rated operation current Ie at AC-3, 400 V
- 450A
- Rated operation power at AC-3, 400 V
- 260kW
- Rated operation current Ie at AC-4, 400 V
- 280A
- Rated operation power at AC-4, 400 V
- 150kW
- Modular version
- No
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Type of electrical connection of main circuit
- Screw connection
- Number of normally open contacts as main contact
- 3

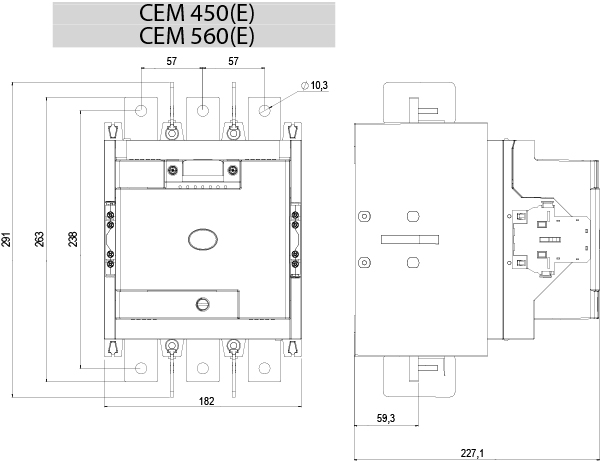

Images & Diagrams
