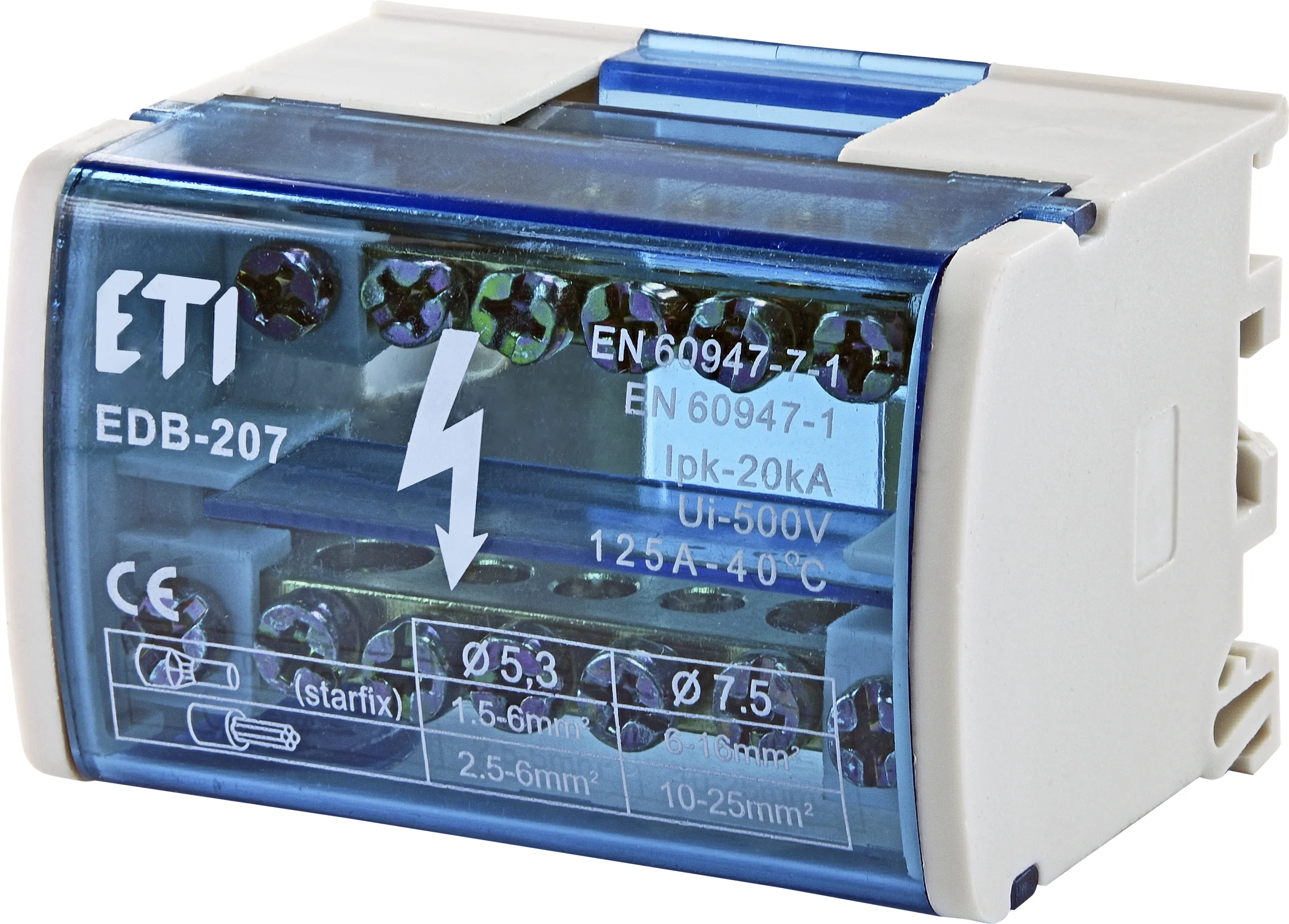

Distribution block EDB-207 001102300
Specifications
- ETI Code:
- 001102300
- Description:
- EDB-207
- Class name:
- Distribution block
- Working temperature (°C):
- -30 ÷ 85
- Mounting type:
- TH 35
- Rated current (A):
- 125
- Rated voltage (V):
- 400
- Rated insulation voltage (V):
- 500
- Short circuit capacity (kA):
- 20
- Number of terminals:
- 2x7
- Height (mm):
- 50
- Width (mm):
- 65
- Depth (mm):
- 42
- Rated cross section:
- 2x (5x 1,5 - 6mm2 + 2x 6 - 16mm2)
- Body material:
- PA
- Clamp material:
- MO-57
Documents
Logistic Data
Product
- Customs tariff
- 85369010
- logis_net_width
- 66 mm
- logis_net_height
- 45 mm
- logis_net_depth
- 51 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895633303
- Basic packaging weight
- 0.14 kg
Transport packaging
- Transport packaging quantity
- 100
- EAN code for a transport packaging
- 3838895633310
- Transport packaging weight
- 14 kg
- Pallet quantity
- 5700
ETIM Clasification
- Classification
- EC001284
- Class name
- Single- and multi-pole terminal strip
- Connectable conductor cross section solid-core
- 1.5…16mm²
- Rated current In
- 125A
- Rated voltage
- 400V
- Type of electrical connection 1
- Screw connection
- Number of poles
- 2
- Number of clamp positions per pole
- 7
- Mounting method
- Other
- Material insulation body
- Thermoplastic
- Closing plate required
- Yes
- Colour
- Grey
- Transparent
- Yes
