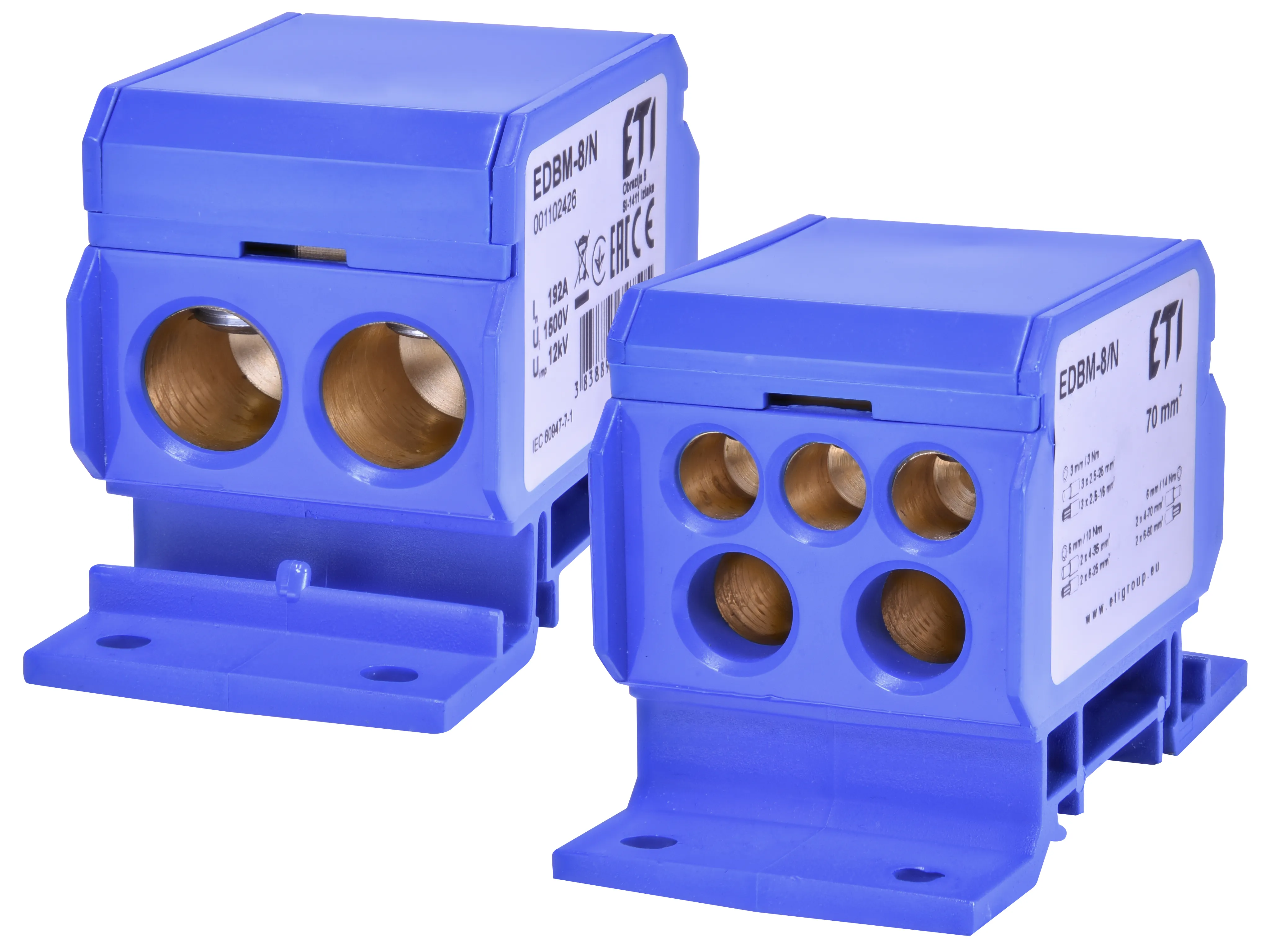

Distribution block EDBM-8/N 001102426
Specifications
- ETI Code:
- 001102426
- Description:
- EDBM-8/N
- Class name:
- Distribution block
- Mounting type:
- TH 35
- Rated current (A):
- 192A
- Rated insulation voltage (V):
- 1500V
- Short circuit capacity (kA):
- 12kA
- Height (mm):
- 44mm
- Width (mm):
- 40mm
- Depth (mm):
- 80mm
- Rated cross section:
- 2.5mm²
- Body material:
- PA6 GF25
- Clamp material:
- MO-58
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895747505
- Net weight of the product
- 0.225 kg
- Customs tariff
- 85369010
- logis_net_width
- 40 mm
- logis_net_height
- 79 mm
- logis_net_depth
- 51 mm
Basic packaging
- Basic packaging quantity
- 5
- EAN code for a basic packaging
- 3838895747482
- Basic packaging weight
- 1.16 kg
Transport packaging
- Transport packaging quantity
- 100
- EAN code for a transport packaging
- 3838895747499
- Transport packaging weight
- 23.2 kg
- Pallet quantity
- 3000
ETIM Clasification
- Classification
- EC001284
- Class name
- Single- and multi-pole terminal strip
- Connectable conductor cross section solid-core
- 4…70mm²
- Connectable conductor cross section multi-wired
- 6…50mm²
- Rated current In
- 192A
- Rated voltage
- 1500V
- Type of electrical connection 1
- Screw connection
- Number of poles
- 1
- Number of clamp positions per pole
- 7
- Mounting method
- Other
- Material insulation body
- Thermoplastic
- Operating temperature
- -25…80°C
- Closing plate required
- No
- Colour
- Blue
EDBM-8/N
