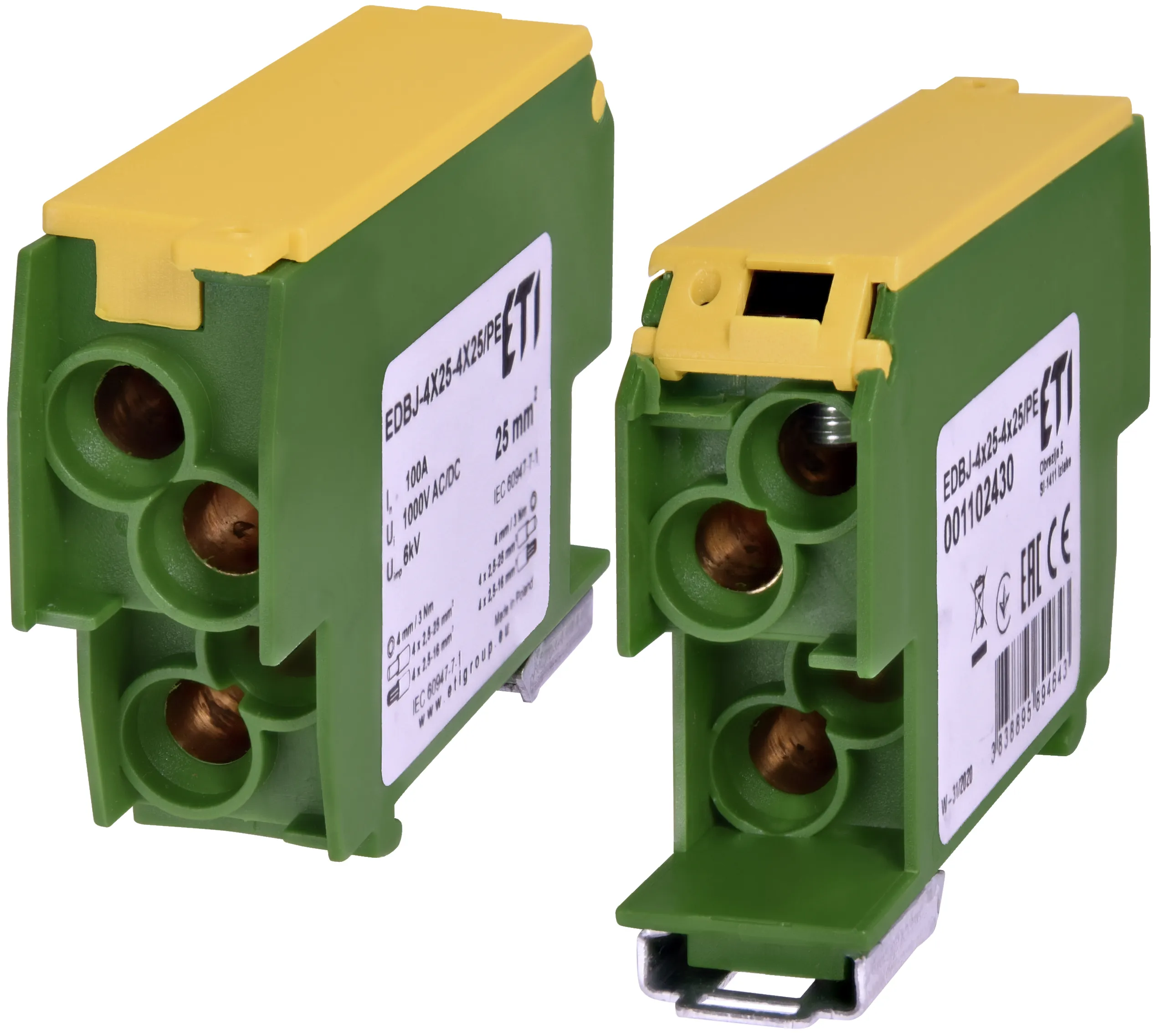

Distribution block EDBJ-4x25-4x25/PE 001102430
Specifications
- ETI Code:
- 001102430
- Description:
- EDBJ-4x25-4x25/PE
- Class name:
- Distribution block
- Working temperature (°C):
- -30°C-80°C
- Function:
- Razdelilni blok
- Mounting type:
- TH 35
- Rated current (A):
- 100A
- Rated insulation voltage (V):
- 1000V
- Short circuit capacity (kA):
- 10kA
- Height (mm):
- 80.3mm
- Width (mm):
- 17.8mm
- Depth (mm):
- 50mm
- Rated cross section:
- 2.5mm²
- Body material:
- PC/ABS
- Clamp material:
- MO-58
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895894643
- Net weight of the product
- 0.125 kg
- Customs tariff
- 85369010
- logis_net_width
- 18 mm
- logis_net_height
- 80 mm
- logis_net_depth
- 50 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838400166197
- Basic packaging weight
- 131 kg
Transport packaging
- Transport packaging quantity
- 240
- EAN code for a transport packaging
- 3838895894636
- Transport packaging weight
- 30 kg
- Pallet quantity
- 4800
ETIM Clasification
- Classification
- EC001284
- Class name
- Single- and multi-pole terminal strip
- Connectable conductor cross section solid-core
- 2.5…25mm²
- Rated current In
- 100A
- Rated voltage
- 415V
- Type of electrical connection 1
- Screw connection
- Number of poles
- 1
- Number of clamp positions per pole
- 8
- Mounting method
- Other
- Material insulation body
- Thermoplastic
- Operating temperature
- -30…80°C
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- No
- Colour
- Green/yellow
