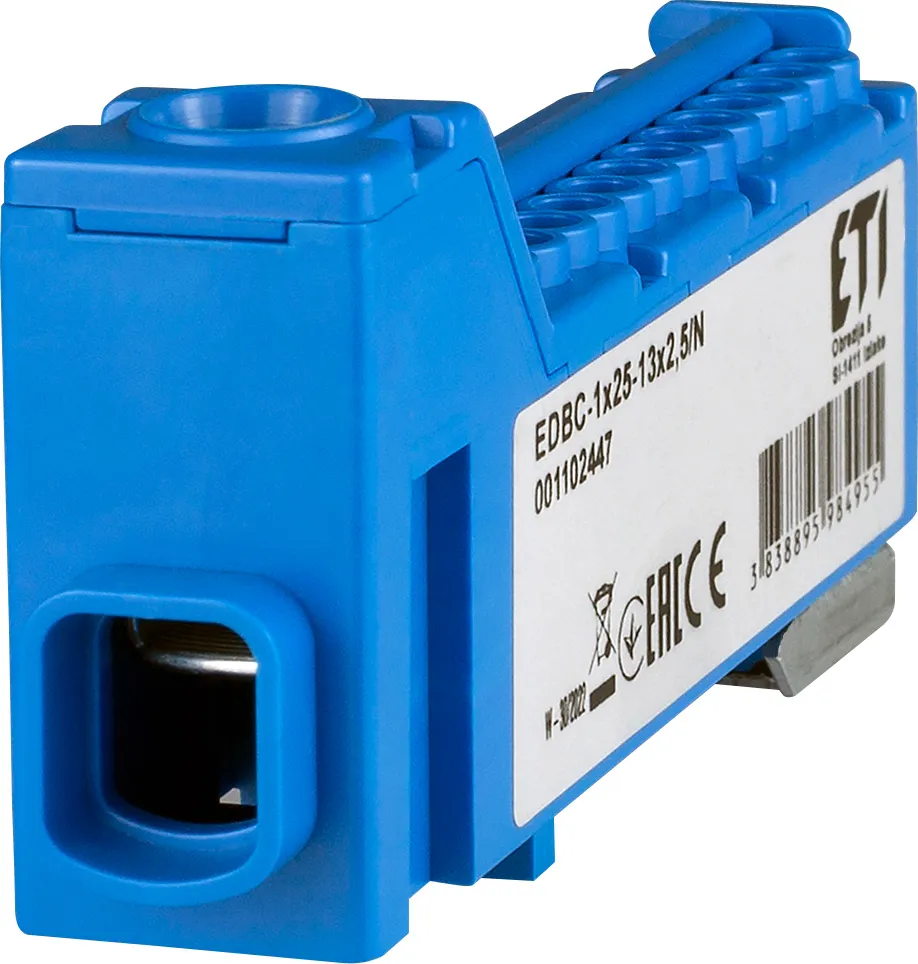

Distribution block EDBC-1x25-13x2,5/N 001102447
Specifications
- ETI Code:
- 001102447
- Description:
- EDBC-1x25-13x2,5/N
- Class name:
- Distribution block
- Working temperature (°C):
- -30°C-80°C
- Mounting type:
- TH 35
- Rated current (A):
- 63A
- Rated insulation voltage (V):
- 1000V
- Short circuit capacity (kA):
- 4kA
- Height (mm):
- 85mm
- Width (mm):
- 17.5mm
- Depth (mm):
- 37.2mm
- Rated cross section:
- 1.5mm²
- Body material:
- PC/ABS
- Clamp material:
- Cu-ETP-Zn
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895984955
- Net weight of the product
- 0.054 kg
- Customs tariff
- 85369010
Basic packaging
- Basic packaging quantity
- 8
- EAN code for a basic packaging
- 3838400166319
- Basic packaging weight
- 0.54 kg
Transport packaging
- Transport packaging quantity
- 240
- EAN code for a transport packaging
- 3838895978251
- Transport packaging weight
- 12.9 kg
- Pallet quantity
- 7680
ETIM Clasification
- Classification
- EC001284
- Class name
- Slotted cable trunking system
- Height
- 85mm
- Width
- 17,5mm
- Useful cross section
- 25mm²
- Colour
- Blue
EDBC-1x25-13x2,5/N
