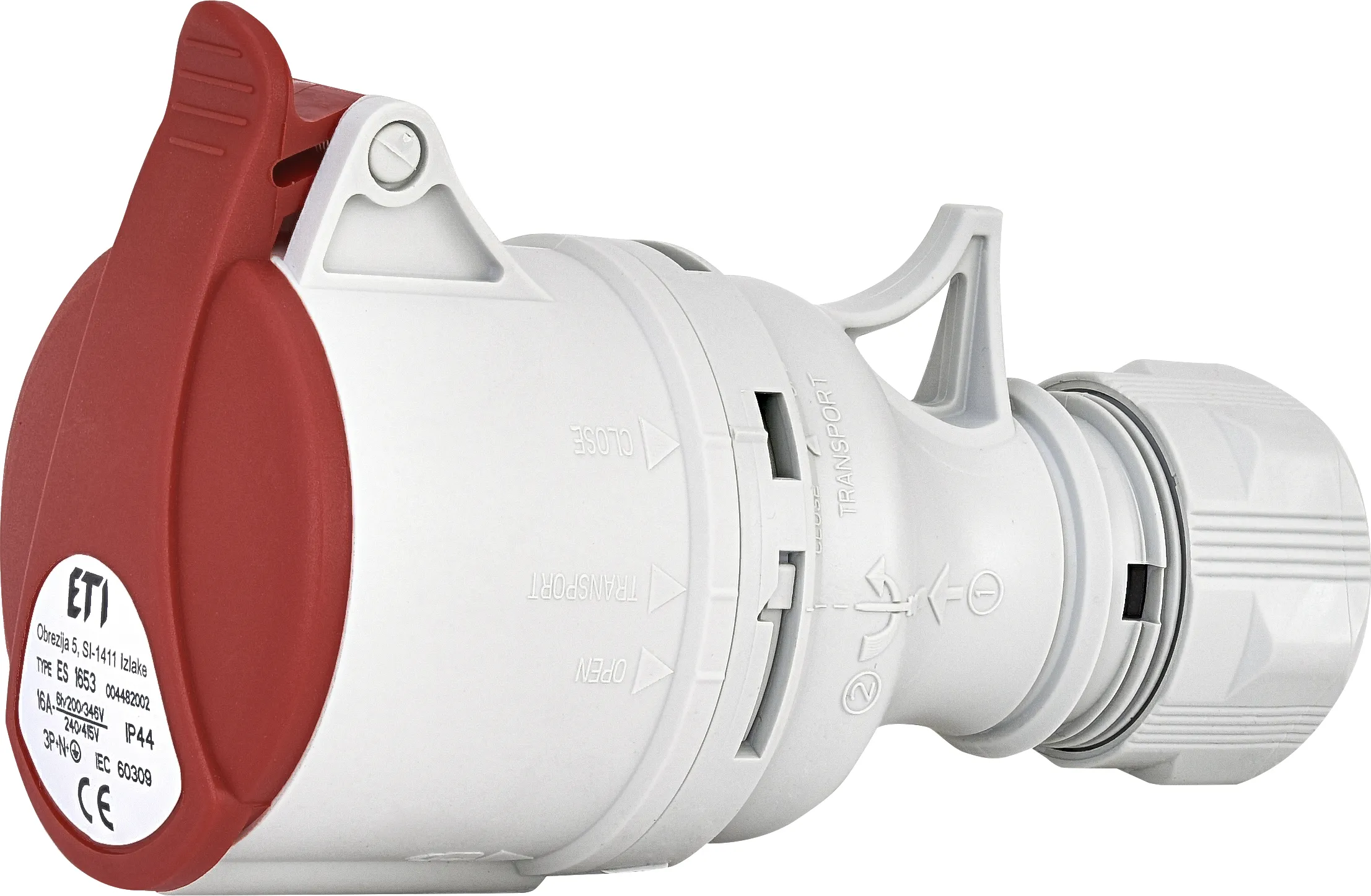

CEE Socket ES 1653 004482002 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 004482002
- Description:
- * ES 1653
- Class name:
- CEE Socket
- Rated current (A):
- 16A
- Number of poles:
- 3+N+PE
- IP rating:
- IP44
- Type: socket/plug:
- Connecting sockets
Documents
Logistic Data
Product
- Net weight of the product
- 0.197 kg
- Customs tariff
- 85366990
Transport packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895673187
- Transport packaging weight
- 2.375 kg
- Pallet quantity
- 1536
ETIM Clasification
- Classification
- EC001320
- Class name
- CEE coupling
- IEC-amperage
- 16A
- Number of poles
- 3
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Identification colour
- Red
- Degree of protection (IP)
- IP44
- Connection system
- Screwed terminal
- Insert direction
- Straight
- Cable entry
- Gland nut
- Material
- Plastic
Images & Diagrams
Tags
Accessories 10
>
>
0
* ES 1653
