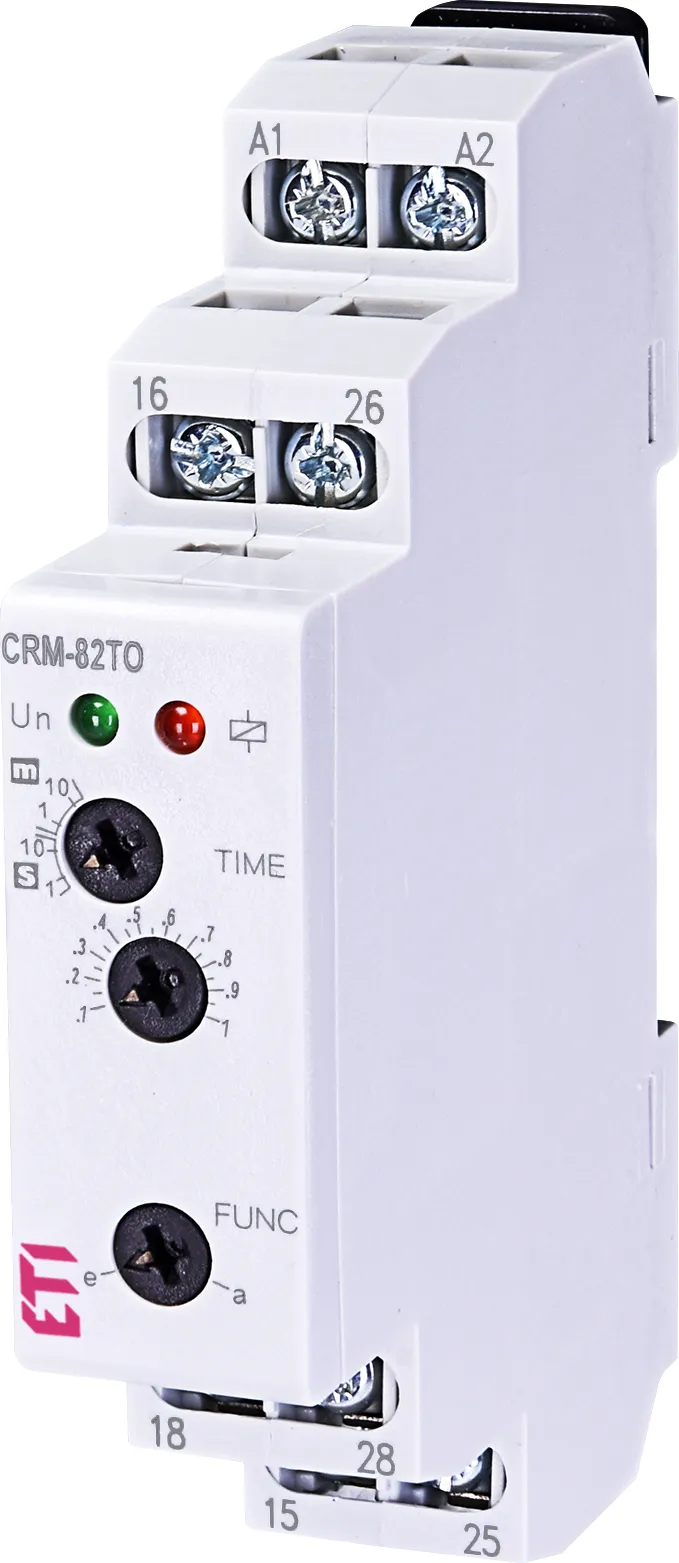

Time relay CRM-82TO UNI 002470074 Obsolete
This product is obsolete and has been replaced with CRM-72TO UNI.
Compare products
Specifications
- ETI Code:
- 002470074
- Description:
- *CRM-82TO UNI
- Class name:
- Time relay
- Maximum load capacity at AC1 (VA):
- 2000VA
- Function:
- Time relay
- Rated current (A):
- 8A
- Voltage type:
- AC/DC
- Number of CO contacts:
- 1
- Supply voltage (V):
- 12V-240V
- Number of contacts:
- 2
- Number of functions:
- 2
Documents
Logistic Data
Product
- Net weight of the product
- 0.065 kg
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 91 mm
- logis_net_depth
- 60 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895423638
- Basic packaging weight
- 0.09 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895423645
- Transport packaging weight
- 1 kg
- Pallet quantity
- 8000
ETIM Clasification
- Classification
- EC001669
- Class name
- Timer relay for distribution board
- Type of excitation
- Digital with multi function
- Function
- Release-delay
- 1st interval unit
- Seconds/minutes
- 1st interval
- 0.1…10
- Mounting method
- DIN rail
- Width in number of modular spacings
- 1
- Built-in height
- 65mm
- Number of changeover switches
- 2
- Supply voltage
- 12…240V
- Voltage type (supply voltage)
- AC/DC
*CRM-82TO UNI
