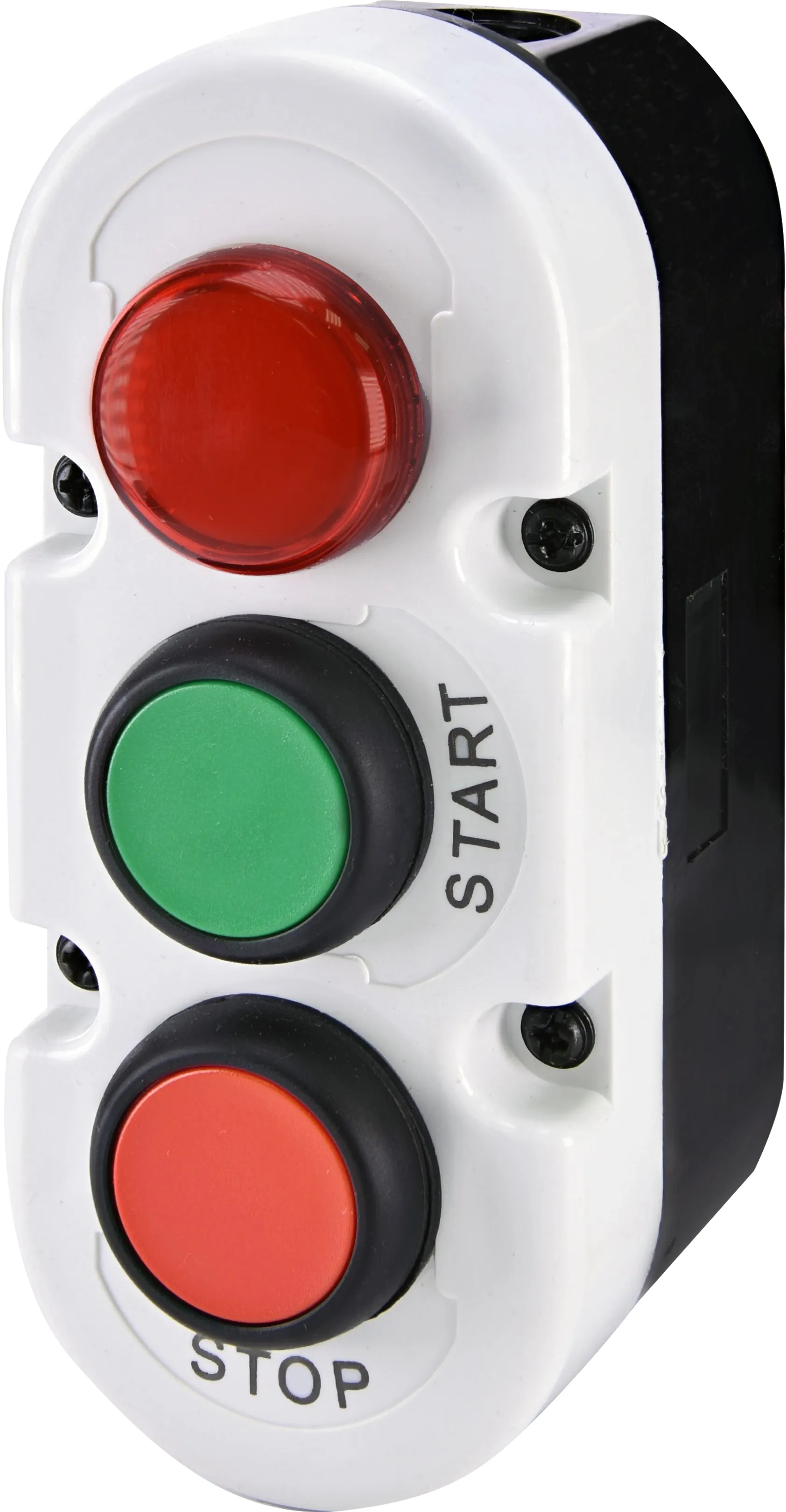

Push button station ESE3-V8 004771446
Specifications
- ETI Code:
- 004771446
- Description:
- ESE3-V8
- Class name:
- Push button station
Documents
Logistic Data
Product
- Net weight of the product
- 0.172 kg
- Customs tariff
- 85389099
- logis_net_width
- 55 mm
- logis_net_height
- 145 mm
- logis_net_depth
- 63 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895782834
- Basic packaging weight
- 0.242 kg
Transport packaging
- Transport packaging quantity
- 30
- EAN code for a transport packaging
- 3838895782841
- Transport packaging weight
- 1.05 kg
- Pallet quantity
- 2250
ETIM Clasification
- Classification
- EC000225
- Class name
- Control circuit devices combination in enclosure
- Number of command positions
- 3
- Number of push buttons
- 2
- Number of indicator lights
- 1
- Rated control supply voltage AC 50 Hz
- 24…230V
- Rated control supply voltage DC
- 24…24V
- Colour housing cover
- Grey
- Housing material
- Plastic
- Number of contacts as normally open contact
- 1
- Number of contacts as normally closed contact
- 1
- Degree of protection (IP)
- IP65
ESE3-V8
