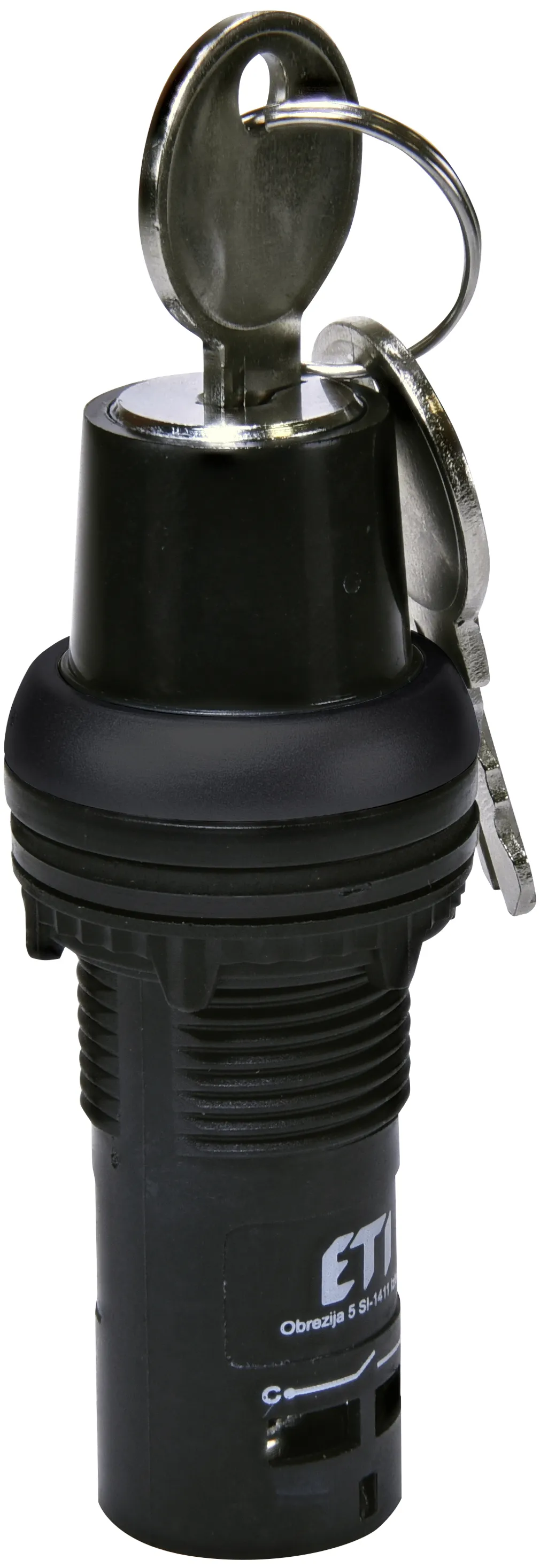

Push button keylock actuator ECK2-N30-10 004771647
Specifications
- ETI Code:
- 004771647
- Description:
- ECK2-N30-10
- Class name:
- Push button keylock actuator
- Function:
- Non-illuminated actuators
- Type:
- Compact integral actuator, with key
Documents
Logistic Data
Product
- Net weight of the product
- 0.051 kg
- Customs tariff
- 85389099
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895876205
- Basic packaging weight
- 0.58 kg
Transport packaging
- Transport packaging quantity
- 150
- EAN code for a transport packaging
- 3838895876212
- Transport packaging weight
- 9.2 kg
- Pallet quantity
- 5700
ETIM Clasification
- Classification
- EC001029
- Class name
- Selector switch, complete
- Number of switch positions
- 2
- Type of control element
- Long turning handle
- Hole diameter
- 22,5mm
- Spring-return
- No
- Degree of protection (IP)
- IP65
- Supply voltage
- 240…240V
- Number of contacts as normally open contact
- 1
- Type of electric connection
- Screw connection
- Material front ring
- Plastic
