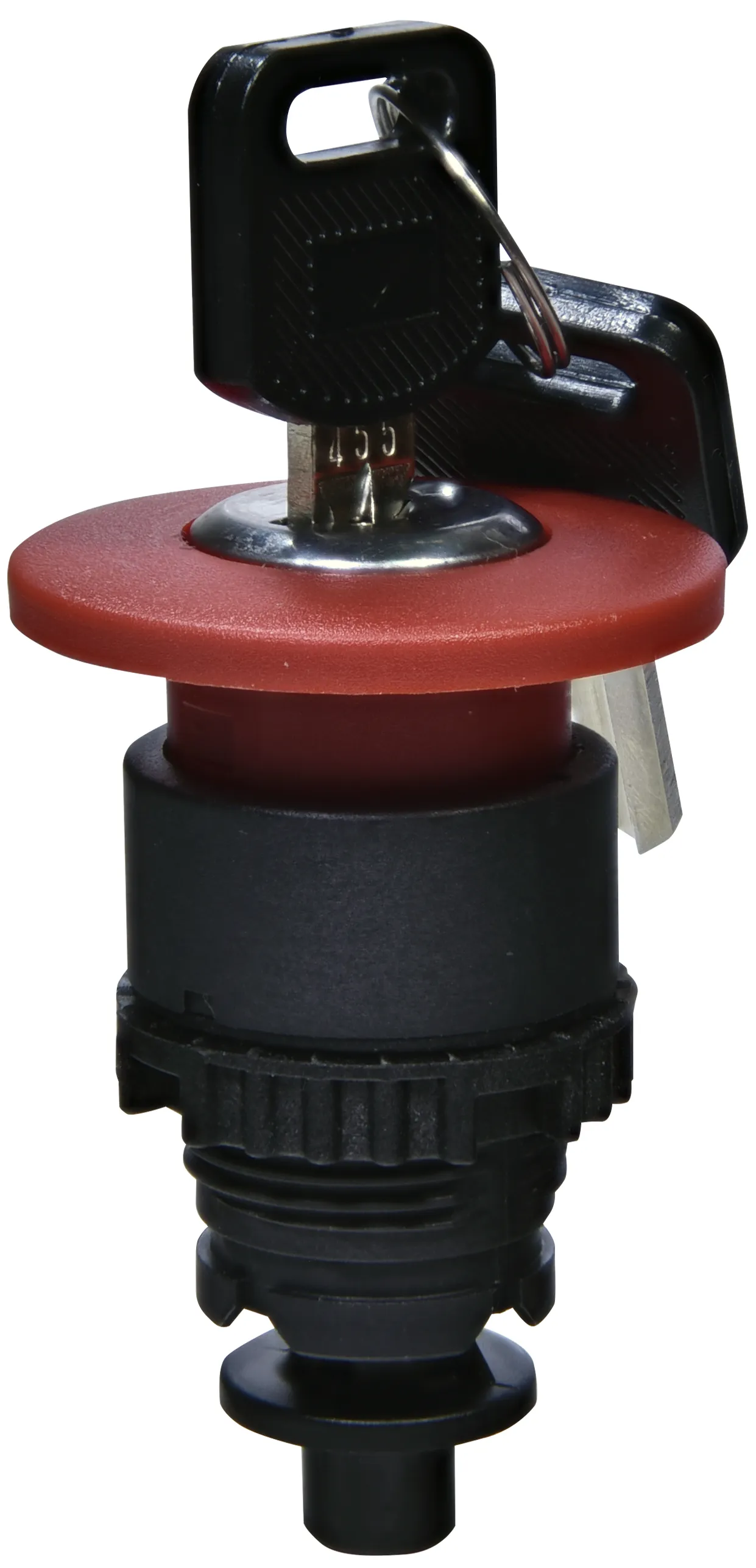

Push button actuator NSE-PBM-R-K 004774023

Specifications

ETI Code:
004774023
Description:
NSE-PBM-R-K
Class name:
Push button actuator
Function:
Mushroom pushbutton
Type:
Latch, with key to release, non-illuminated

Documents

Product

Net weight of the product
0.086  kg
Customs tariff
85365080

Basic packaging

Basic packaging quantity
1

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
7909712854815
Transport packaging weight
0.09  kg
Pallet quantity
272

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
004774023 Push button actuator, NSE-PBM-R-K ETISIG NSE Actuators and indicators NSE Actuators and indicators Non-illuminated actuators Non-illuminated actuators Push Button Mushroom type Automation, signaling and control devices Actuators and indicators 22,5mm ETISIG Actuators and indicators with accessories Actuators and indicators Function Mushroom pushbutton Type Latch, with key to release, non-illuminated IP rating IP66 Color Red Standards IEC 60947-5-1, ISO 13850 (EN 418), IEC 60947-5-5 Number of NO contacts 1 Contacts 1x NO Rated insulation voltage 690V Hole diameter 22,5mm Approvals CE Mechanical cycles 300.000
