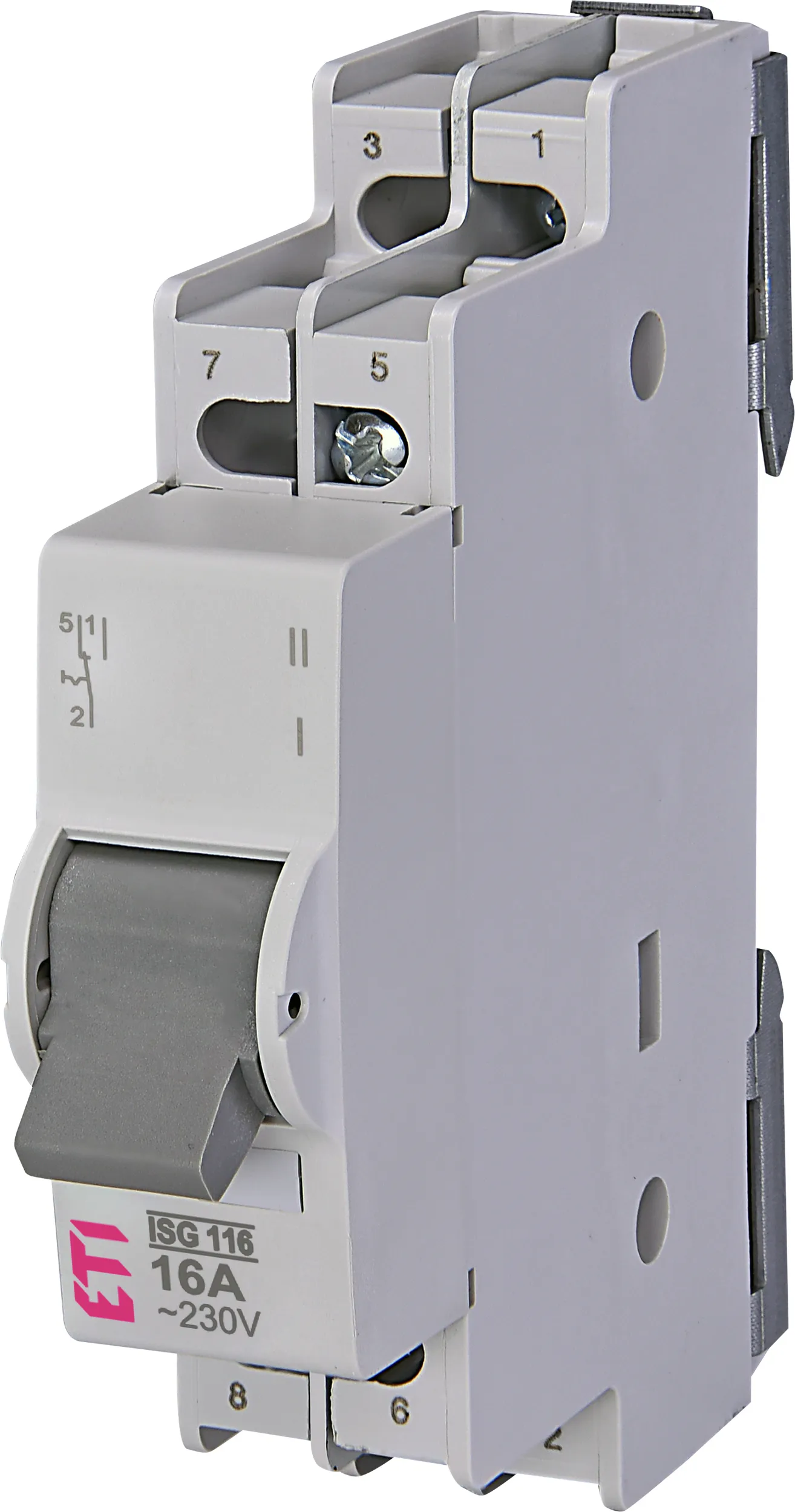

Change-over switch ISG 116 1pol 16A 760311103 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 760311103
- Description:
- *ISG 116 1pol 16A
- Class name:
- Change-over switch
- Catalogue Group:
- Control switch
- Catalogue subgroup:
- Change-over switch 1-0-2
- Function:
- Change-over switch
- Rated current (A):
- 16
- Rated AC voltage (V):
- 230
- Rated DC voltage (V):
- 24
- Number of poles:
- 1
- IP rating:
- IP20
- Max input cross-section (mm²):
- 1x6 mm² / 2x2,5 mm², max. 1 Nm
- Rated Frequency (Hz):
- 50/60 Hz
- Standards:
- IEC/EN 60947-1, IEC/EN 60947-3
- Utilization category:
- AC-22A
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895793021
- Net weight of the product
- 59.4 g
- Customs tariff
- 85365080
- logis_net_width
- 18 mm
- logis_net_height
- 84 mm
- logis_net_depth
- 71 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895793038
- Basic packaging weight
- 0.93 kg
Transport packaging
- Transport packaging quantity
- 60
- EAN code for a transport packaging
- 3838895807056
- Transport packaging weight
- 4.77 kg
- Pallet quantity
- 3960
