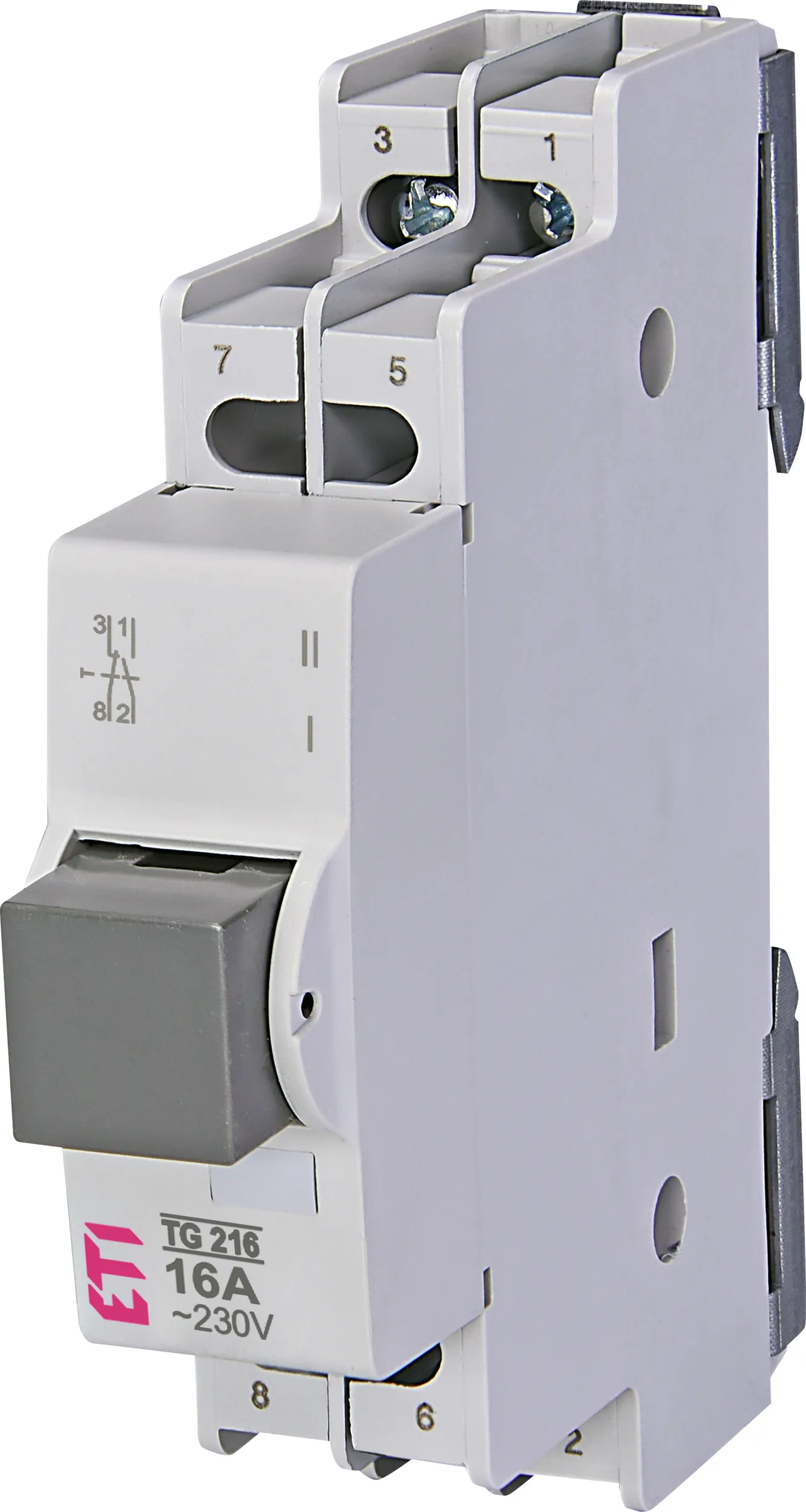

Push-button TG 216 2pol 16A grey 764904101 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 764904101
- Description:
- *TG 216 2pol 16A grey
- Class name:
- Push-button
- Catalogue Group:
- Push-button
- Catalogue subgroup:
- Push-button
- Function:
- Push-button
- Rated current (A):
- 16
- Rated AC voltage (V):
- 230
- Rated DC voltage (V):
- 24
- Number of poles:
- 2
- IP rating:
- IP20
- Max input cross-section (mm²):
- 1x6 mm² / 2x2,5 mm², max. 1 Nm
- Rated Frequency (Hz):
- 50/60 Hz
- Standards:
- IEC/EN 60947-1, IEC/EN 60947-3
- Utilization category:
- AC-11A
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895793182
- Net weight of the product
- 80 g
- Customs tariff
- 85365080
- logis_net_width
- 18 mm
- logis_net_height
- 84 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895793199
- Basic packaging weight
- 0.95 kg
Transport packaging
- Transport packaging quantity
- 60
- EAN code for a transport packaging
- 3838895807131
- Transport packaging weight
- 4.9 kg
- Pallet quantity
- 3960
*TG 216 2pol 16A grey
