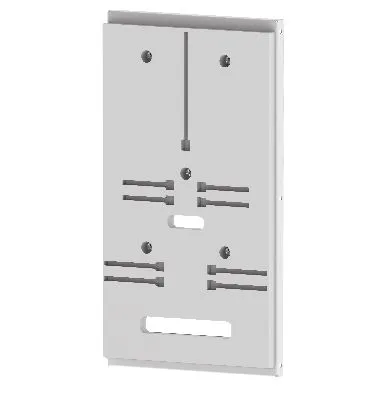

Grid base plate DL-S3F1-2.5 001342750

Specifications

ETI Code:
001342750
Description:
DL-S3F1-2.5
Class name:
Grid base plate
Catalogue Group:
SOLID GSX Meter boards
Product group accessories:
Meter board
Function accessories:
Plate with meter boards
Height (mm):
375mm
Width (mm):
250mm

Documents

Product

Net weight of the product
0.96  kg
Customs tariff
85389099

Basic packaging

Basic packaging quantity
1

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
5902047609251
Transport packaging weight
0.98  kg
Pallet quantity
90
Classification
EC000263
Class name
Meter panel
With wiring
No
Number of meter boards
1
Width
250mm
Height
375mm
Width in number of modular spacings
12
With mounting plate
Yes
ETIM Classification – Version 7.0

Software & drivers

Configurator Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
001342750 Grid base plate, DL-S3F1-2.5 ETIBOX1 SOLID GSX INTERNAL STRUCTURAL SYSTEM AND ACCESSORIES Meter boards Plate with meter boards Plate with 1 meter board for panel with width 1 (250) Enclosures, distribution boards, equipment ETIBOX Enclosure system and accessories SOLID GSX GSX system elements DL-S3F1-2.5 Function Internal construction system For use with SOLID GSX system Size 2.5 Height 375mm Width 250mm Dimensions 250x375 Function accessories Plate with meter boards Product group accessories Meter board Catalogue Group SOLID GSX Meter boards
