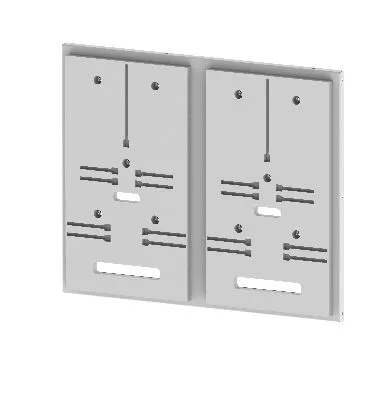

Grid base plate DL-S3F2-2.5 001342751

Specifications

ETI Code:
001342751
Description:
DL-S3F2-2.5
Class name:
Grid base plate
Catalogue Group:
SOLID GSX Meter boards
Product group accessories:
Meter board
Function accessories:
Plate with meter boards
Height (mm):
375mm
Width (mm):
500mm

Documents

Product

Net weight of the product
1.915  kg
Customs tariff
85389099

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
5902047609268
Basic packaging weight
1.92  kg
Classification
EC000263
Class name
Meter panel
With wiring
No
Number of meter boards
2
Width
500mm
Height
375mm
Width in number of modular spacings
24
With mounting plate
Yes
ETIM Classification – Version 7.0

Software & drivers

Configurator Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
001342751 Grid base plate, DL-S3F2-2.5 ETIBOX1 SOLID GSX INTERNAL STRUCTURAL SYSTEM AND ACCESSORIES Meter boards Plate with meter boards Plate with 2 meter board for panel with width 2 (500) Enclosures, distribution boards, equipment ETIBOX Enclosure system and accessories SOLID GSX GSX system elements DL-S3F2-2.5 Function Internal construction system For use with SOLID GSX system Size 2.5 Height 375mm Width 500mm Dimensions 500x375 Function accessories Plate with meter boards Product group accessories Meter board Catalogue Group SOLID GSX Meter boards
