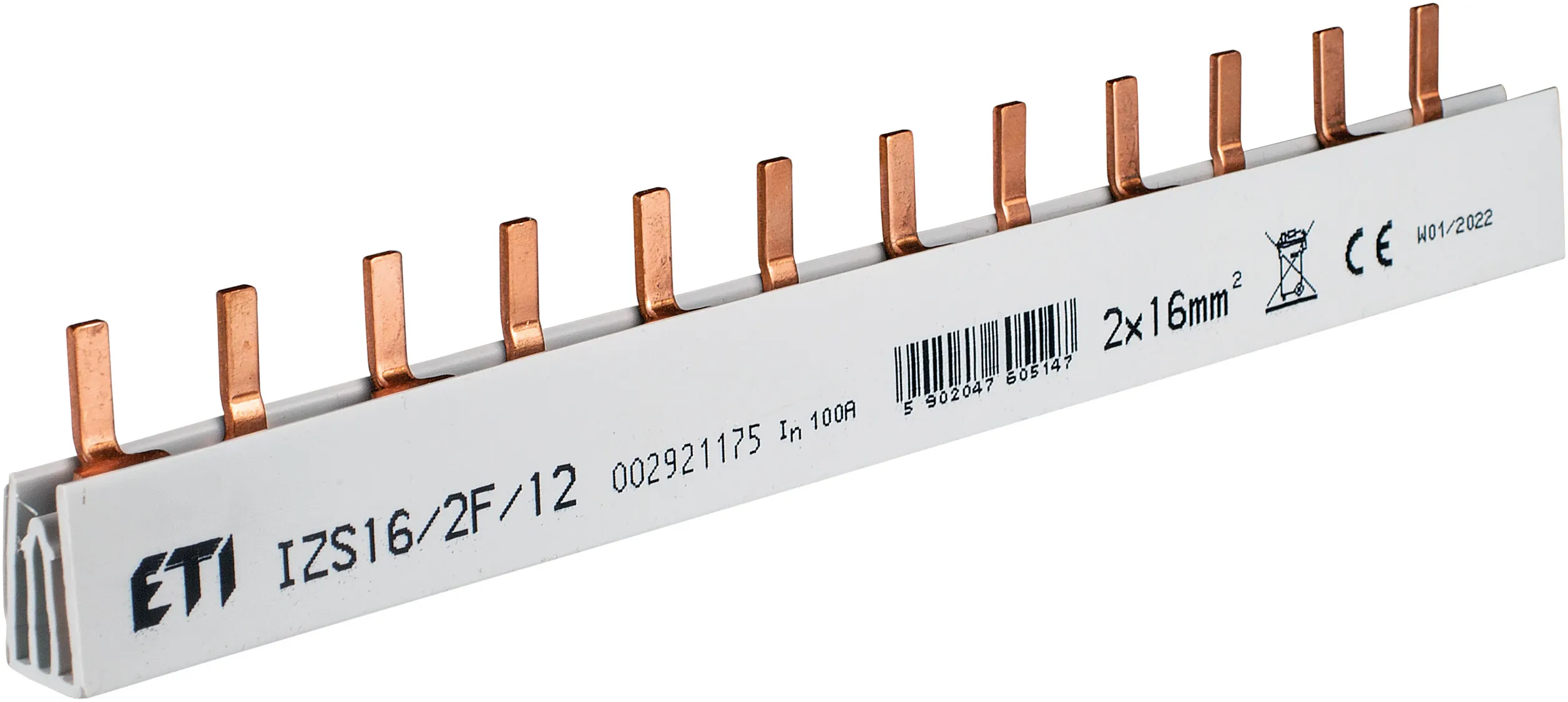

Insulated busbar IZS16/2F/12 002921175
Specifications
- ETI Code:
- 002921175
- Description:
- IZS16/2F/12
- Class name:
- Insulated busbar
- Function:
- End cover cap
- Type:
- PIN
- Rated current (A):
- 100
- Rated voltage (V):
- 240/415
- Rated cross section:
- 16
- Lenght in modules:
- 12
- Number of phases:
- 2
- Type accessories:
- Section rails
- For use with:
- EFI-2, KZS-2M
Documents
Logistic Data
Product
- Net weight of the product
- 0.11 kg
- Customs tariff
- 85389099
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 5902047605185
- Basic packaging weight
- 1.2 kg
Transport packaging
- Transport packaging quantity
- 200
- EAN code for a transport packaging
- 5902047605222
- Transport packaging weight
- 23 kg
- Pallet quantity
- 6000
ETIM Clasification
- Classification
- EC000215
- Class name
- Phase busbar
- Number of phases
- 2
- Number of poles
- 12
- Suitable for number of devices
- 6
- Module width
- 17,8mm
- Cross section
- 16mm²
- Rated permanent current Iu
- 100A
- Type of electric connection
- Pin
- Insulated
- Yes
- Max. rated operation voltage Ue
- 240/415V
IZS16/2F/12
