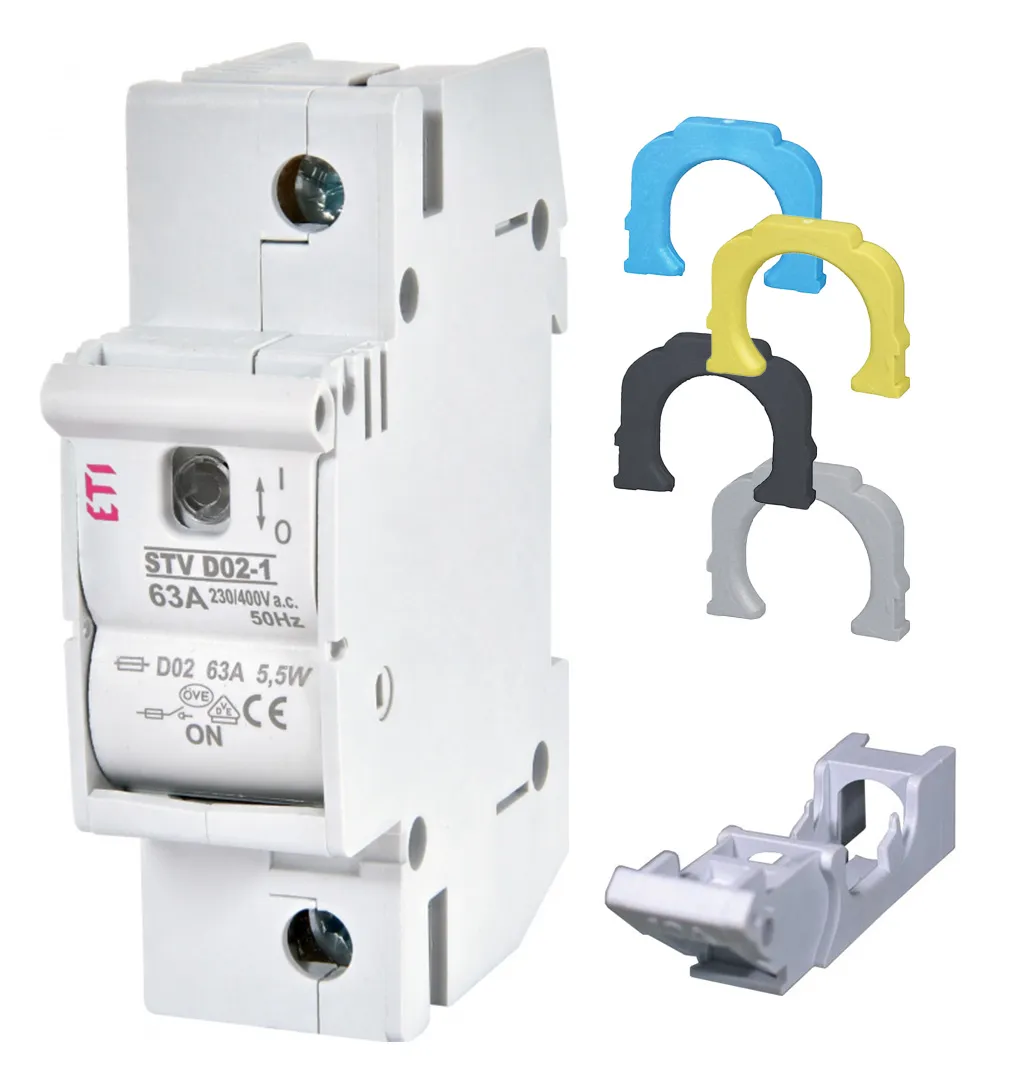

Switch disconnector fuse STV D02 1p 63A/400V komplet 002271101
Specifications
- ETI Code:
- 002271101
- Description:
- STV D02 1p 63A/400V komplet
- Class name:
- Switch disconnector fuse
- Mounting type:
- TH 35
- Product group:
- LV-fuse disconnector
- Utilization category:
- AC-22A
- Size:
- D02
- Type:
- STV D02 SET
- Number of poles:
- 1
- Rated current (A):
- 63A
- Rated AC voltage (V):
- 230V/400V
- Rated DC voltage (V):
- 110V
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400030658
- Net weight of the product
- 0.144 kg
- Customs tariff
- 85389099
- logis_net_width
- 27 mm
- logis_net_height
- 89 mm
- logis_net_depth
- 69 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895580959
- Basic packaging weight
- 1.65 kg
Transport packaging
- Transport packaging quantity
- 96
- EAN code for a transport packaging
- 3838895580966
- Transport packaging weight
- 13.8 kg
- Pallet quantity
- 2304
ETIM Clasification
- Classification
- EC000277
- Class name
- D0-system switch disconnector
- Number of poles
- 1
- Construction size
- D02
- Rated voltage
- 400V
- Rated current
- 63A
