Fuse disconnector EFD 14 1p 002560001
Specifications
- ETI Code:
- 002560001
- Description:
- EFD 14 1p
- Class name:
- Fuse disconnector
- Mounting type:
- TH 35
- Size:
- 14x51
- Rated current (A):
- 50A
- Number of poles:
- 1
- Rated AC voltage (V):
- 690V
- Utilization category:
- AC-22B
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895744986
- Net weight of the product
- 102 g
- Customs tariff
- 85389099
- logis_net_width
- 27 mm
- logis_net_height
- 94 mm
- logis_net_depth
- 76 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895701149
- Basic packaging weight
- 1.29 kg
Transport packaging
- Transport packaging quantity
- 96
- EAN code for a transport packaging
- 3838895701156
- Transport packaging weight
- 10.876 kg
- Pallet quantity
- 2304
ETIM Clasification
- Classification
- EC002705
- Class name
- Holder for cylindrical fuse
- Mounting method
- Other
- For fuse size
- 14x51 mm
- Number of poles
- 1

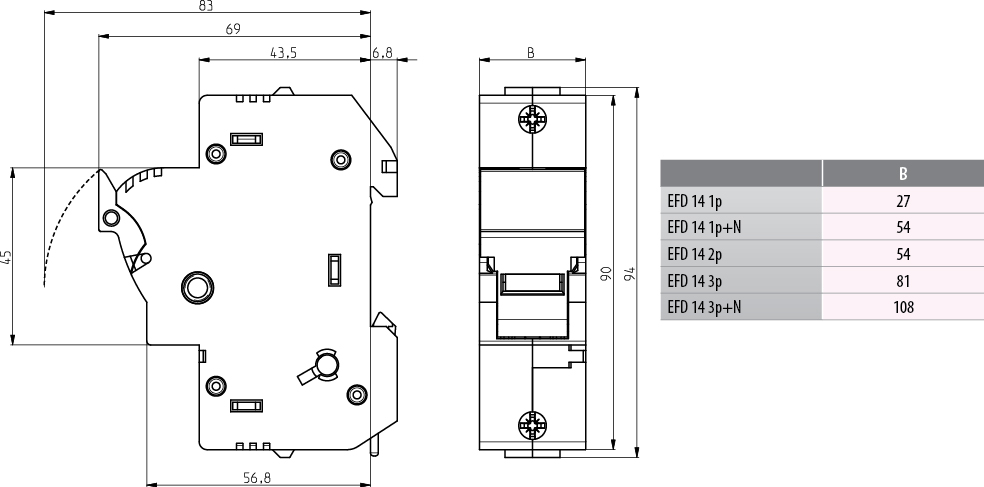

Images & Diagrams
