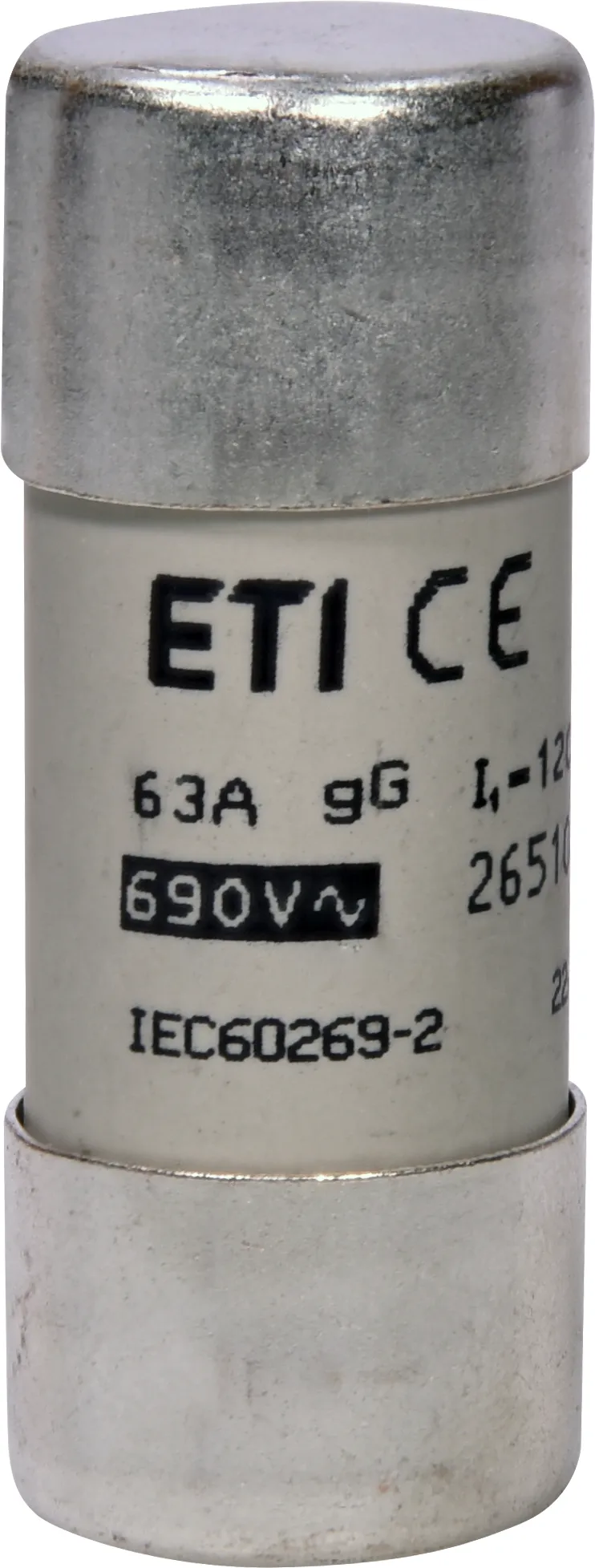

Fuse link CH22x58 gG 63A/690V 002651048
Specifications
- ETI Code:
- 002651048
- Description:
- CH22x58 gG 63A/690V
- Class name:
- Fuse link
- Type:
- CH
- Size:
- 22x58
- Rated current (A):
- 63A
- Rated AC voltage (V):
- 690V
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 120kA
- Application:
- For cable protection
- Power dissipation (W):
- 6.3W
- Standards:
- IEC 60269-1,IEC 60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400116185
- Net weight of the product
- 0.052 kg
- Customs tariff
- 85361050
- logis_net_width
- 22 mm
- logis_net_height
- 58 mm
- logis_net_depth
- 22 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838400095268
- Basic packaging weight
- 0.54 kg
Transport packaging
- Transport packaging quantity
- 250
- EAN code for a transport packaging
- 3838400095275
- Transport packaging weight
- 13.931 kg
- Pallet quantity
- 10750
ETIM Clasification
- Classification
- EC002704
- Class name
- Miniature fuse
- Voltage type
- AC
- Rated current
- 63A
- Rated voltage
- 690V
